Small Pitch P1.984 COB LED Display Outdoor Advertising Led Screen Panel
Small Pitch P1.984 COB LED Display Outdoor Advertising Led Screen Panel
World Exclusive Debut Outdoor COB Fine Pitch 1.984mm High Brightness LED Display
Features:
• Pixels Pitch :1.984mm
• Cabinet Size: 500*500mm ; Module Size :250*250mm
• Full flip chip process, good stability, higher luminous rate
• Customized pigment matching treatment, brightness up to 3000cd/m
• 10000:1 ultra high contrast, restore real color
• Front and rear installation/maintenance: convenient and flexible to meet different application
• Optional connecting magnet, automatic suction, fast positioning, splicing more convenient
• Hard-wired power box : no wiring, can be quickly disassembled and replaced, save time
Description:
• Fine Pitch COB LED Screen for Outdoor Use
1.98mm fine pitch, 10000:1 contrast ratio and ultra-wide views create a stunning visual effects.
• Upgraded High-Protection COB technology
Adopt flip chip COB technology, waterproof, dust-proof, anti-oxidation, anti-static, anti-impact.with its perfect
protection ability, stabilizes LED screen quality even frequently touring use.Greatly saving maintenance cost.
• IP65 Protection, Super High Stability
IP65 high protection both module face and cabinet facilitates long-time stable running even under harsh weather.
• Creative Splicing, Various Applications
Supporting concave and staggered splicing, for free to use in outdoor rental event or permanent installation.
Specifications:
| Model | Epro-P1.984 |
| Density(dot/sqm) | 254016 |
| Pixel Configuration | 1RGB |
| Module Size(mm*mm) | 250*250mm |
| Cabinet Size(mm*mm) | 500*500mm |
| Scanning Method | 1/21 |
| Grayscale(bit) | 13 |
| Refresh Rate(Hz) | 3840 |
| Driving Method | Combination of lamp and drive |
| Horizontal Viewing Angle | >=140 |
| Vertical Viewing Angle | >=100 |
| Cabinet Weight(kg) | 8 |
| Cabinet Material | Die-casting Aluminium |
| Color(M) | >16.7 |
| Output Voltage(V) | AC110-220V+/-10% |
| Proof Level | IP65 |
| Usage Environment | outdoor |
| Working Temperature(°C) | -20°C - +50°C |
| Storage Humidity(RH) | 10%-90% |
| Lifespan(H) | 100,000 |

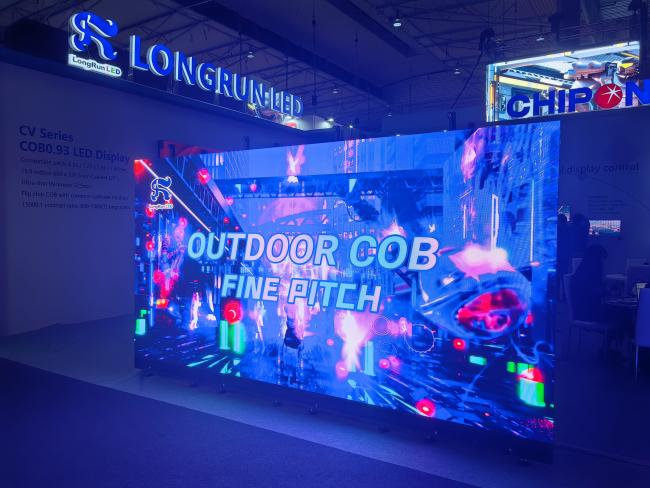

Product Image:
Company Information:
Founded in 2013, Shenzhen LongRun Optoelectronic Co., LTD. is a professional LED display manufacturer
engaging in R&D, manufacturing, and sales. LongRun, with 30 million yuan registered capital, owns a 12,000
sqm manufacturing base located in.The domestic market has covered 35 provinces and cities / autonomous
regions, the overseas business expansion is also quite large-scale, the products are exported to Europe, North
America, South America, Russia, Saudi Arabia, India, Singapore, and other more than 130 countries and regions.
Advantages:
1. OEM manufacturing welcome
2. Sample order is available
3. We will reply you for your inquiry in 24 hours.
