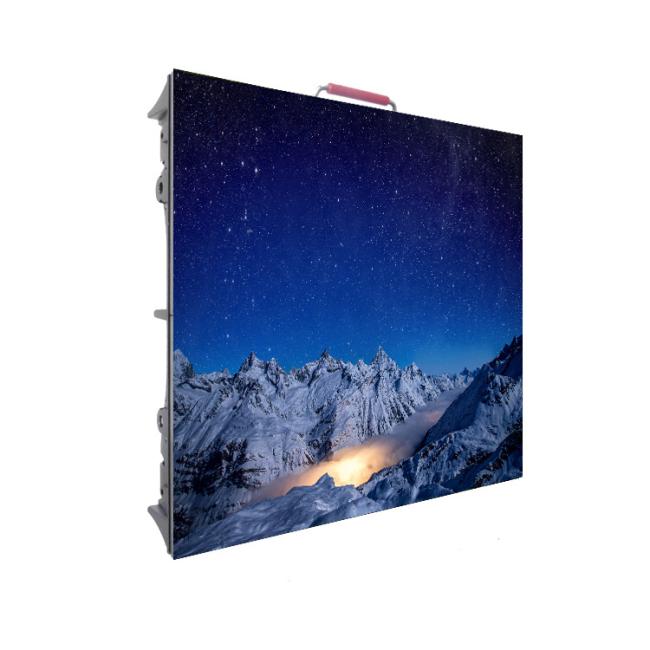

New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness
New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness
P4.81 FULL COLOR INDOOR DISPLAY SPECIFICATION
|
P4.81 outdoor 500*500mm die cast aluminium led display screen |
||
|
Specification |
Item No. |
P4.81 die cast aluminium led display screen |
|
Classification |
Full color |
|
|
Pixel pitch |
4.81 mm |
|
|
Size of module (mm*mm) |
250*250 mm |
|
|
Pixel density |
65536 dots/m2 |
|
|
Pixel composition |
1RGB |
|
|
LED encapsulation |
SMD 1919 |
|
|
Resolution of module |
52*52 |
|
|
Best viewing distance |
3~30m |
|
|
Best viewing angle (Horizontal/Vertical) |
160°/140° |
|
|
Max power consumption |
650W/m2 |
|
|
Driving method |
1/16 Scan |
|
|
Refresh rate |
≥3840HZ |
|
|
White balance brightness |
≥800~3000cd/m2 |
|
|
Working voltage |
AC 220±10% or 110±10% |
|
|
IC |
ICN2150+ICN2012 |
|
|
Cabinet material |
Die cast aluminium |
|
|
Cabinet size |
500*500mm |
|
|
Cabinet weight |
7 kg/cabinet |
|
|
Non-Flatness |
<1mm |
|
|
Contrast Ratio |
5000:1 |
|
|
Blind Spot Rate |
<0.000001 |
|
|
Grey scale |
14 bits |
|
P4.81 full Color LED Video Wall Application
Features:
1. High-precision die casting aluminum material cabinet,special design on cabinet bottom ensures flatness of whole screen even the platform is not flat.Also can protect modules in screen bottom.Front and back maintenance design by module magnet assembly.
2. 250*250mm module,compatible P3.91/P4.81,High contrast,high gray scale.
3. PWM driving IC,refresh≥3840Hz,ensure true 14bit gray level.
4. High-performance PCB board substrate with strict technology process ensure perfect flatness performance,showing the most real and brilliant colors.
5. Optional curved lock to meet customer needs for curved screens.
