1. Product Description

The product is outdoor rental of LongRunLED EH-PRO series, this product adopts COB encapsulation technology, which is different from the traditional SMD surface-mount encapsulation. It integrates the light-emitting RGB chip on the PCB board instead of soldering LED lamp to the PCB one by one. This technology effectively improves the reliability, light color and protection performance of LED display. The standard cabinet size is500mm*500mm and 500mm*1000mm. With up to 3840Hz refresh frequency. Optional with radian locks and can achieve arc splicing. The die casting cabinet with anodic oxidation which is resistant to collision and friction, it's suitable for multiple set up and disassembly in the leasing process.

2. Product Features

• EH2.604-PRO, EH3.91-PRO, EH4.81-PRO compatible pixel pitches;
• Standardized 500mm*500mm die-casting aluminum cabinet, module adopts die-casting aluminum bottom shell, higher screen splicing flatness;
• Hard-wired power box, no wiring, more beautiful;
• Outdoor front and rear installation/maintenance products for fixed installations and rentals;
• The up and down connect with the big magnetic screw,within automatic suction function;
• Common module for 500 and 1000, common power box; supports staggered splicing and 500 and 1000 box splicing;
• With arc box and right angle optional, truly realize arc seamless splicing, no need to arc lock, can realize box arc/shaped installation, suitable for different rental occasions.

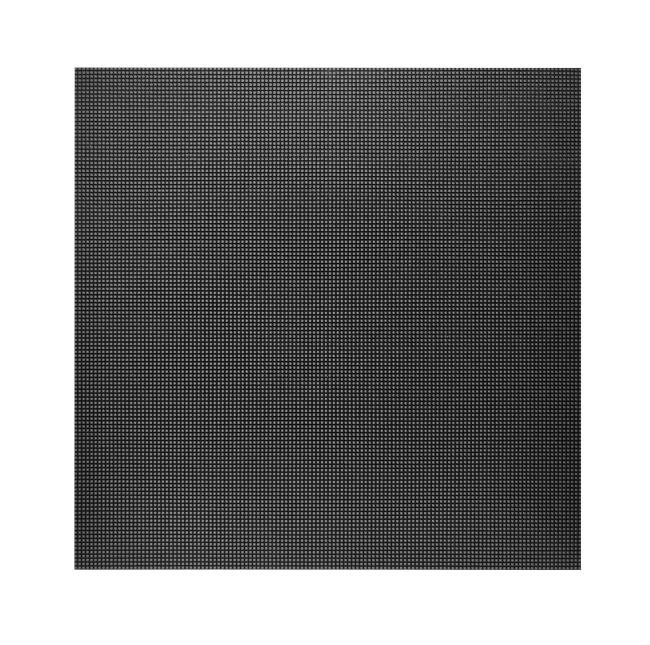

2. 250mm*250mm Module Specification

Item	Specification	Module Picture
Series	EH-PRO Series
Material	Housing plastic
Pixel Pitch	2.6mm
Resolution	96*96(W*H)dot
Module Size	250*250(W*H)mm
Module Weight	650g±10g

3.250mm*500mm Module Specification

Item	Specification	Module Picture
Series	EH-PRO Series
Material	Housing plastic
Pixel Pitch	3.91mm,4.81mm
Resolution	64*128,52*104(W*H)dot
Module Size	250*500(W *H)mm
Module Weight	1.34kg

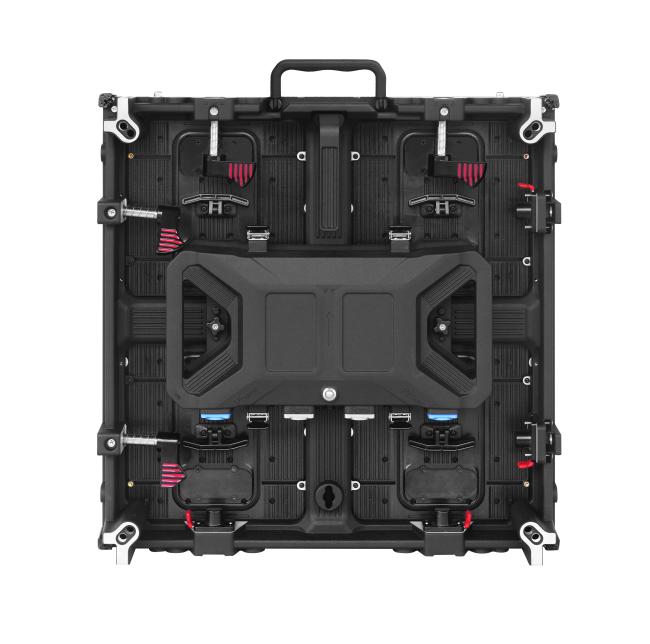

4. 500mm*500mm Cabinet Specification

Item	Specification	Cabinet Picture
Series	EH-PRO Series
Material	Die-casting aluminum
Pixel Pitch	2.6mm
Resolution	128*128,104*104(W*H)dot
Cabinet Size	500*500*90(W*H*D)mm
Cabinet Weight	9.6kg

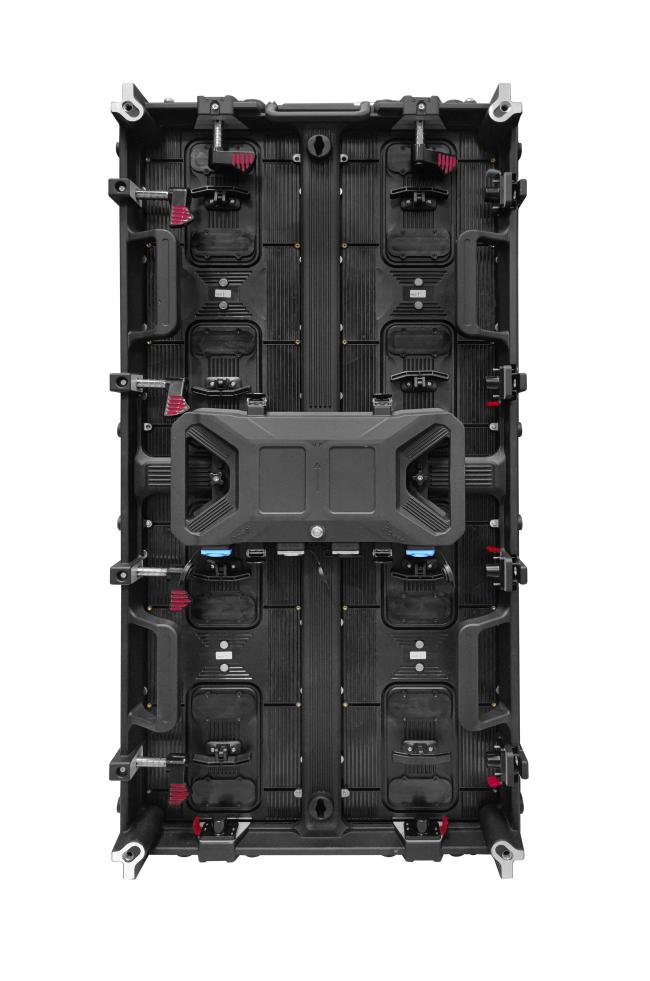

5. 500mm*1000mm Cabinet Specification

Item	Specification	Cabinet Picture
Series	EH-PRO Series
Material	Die-casting aluminum
Pixel Pitch	3.91mm,4.81mm
Resolution	128*256,104*208(W*H)dot
Cabinet Size	500*1000*90(W*H*D)mm
Cabinet Weight	13.5kg

Project Picture

 Comparison

Packing

Logistics

Service Details
