Commercial Advertising LED Display , Hanging Led Screens For Events 1/16 Scanning
Commercial Advertising LED Display , Hanging Led Screens For Events 1/16 Scanning

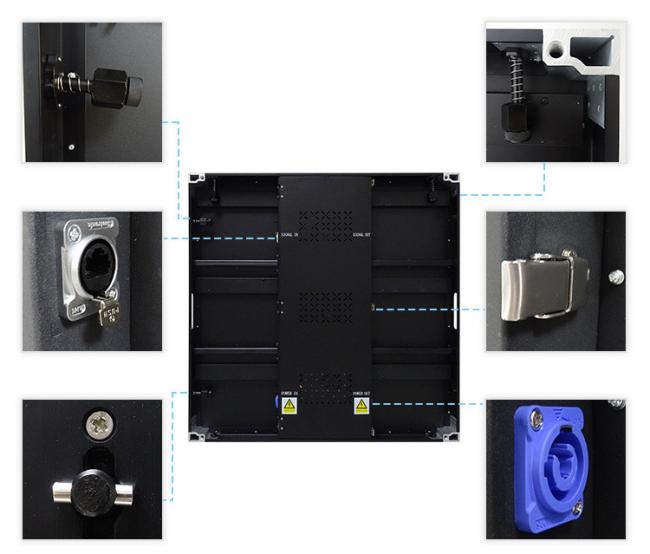

-- Main features of we Longrun profile aluminium cabinet
-- Light: 7.5kg/pc, 512x512mm, assembly time saved.
-- Thin: Die-cast aluminum design, high intensity, high tenacity, high precision, unchangeable, 85mm as the thickness.
-- Fast: Fast locks on the four edge of the cabinet, only 180 degree rolling will lock the closed two cabinets with high precision. Easy to assemble and disassemble the cabinets, fast, reliable and beautiful, it means true quick-assembling.
-- Easy: Modular design, easy to assembly and maintain.
LED Wall Screen Specification
| P4 indoor 512*512mm profile aluminium led display screen | |
| Item No. | P4 profile aluminium led display screen |
| Classification | Full color |
| Pixel pitch | 4 mm |
| Size of module (mm*mm) | 256*128 mm |
| Pixel density | 62,500ots/m2 |
| Pixel composition | 1RGB |
| LED encapsulation | SMD 2121 |
| Resolution of module | 64*32 |
| Best viewing angle (Horizontal/Vertical) | 140°/120° |
| Max power consumption | 780W/m2 |
| Driving method | 1/16 Scan |
| Refresh rate | ≥2400HZ |
| White balance brightness | 500-1000cd/m2 |
| Working voltage | AC 220±10% or 110±10% |
| IC | ICN2038S+2012 |
| Cabinet material | Die cast aluminium |
| Cabinet size | 512*512mm |
| Cabinet weight | 7.5kg/cabinet |
| Non-Flatness | <1mm |
| Contrast Ratio | 4000:1 |
| Blind Spot Rate | <0.000001 |
| Grey scale | 14bits |
Packing
Project for P4 indoor 512*512mm profile aluminium led display screen:
Shenzhen LongRun Facotry:
