P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet
Price:
Negotiable
MOQ:
>=1 Square Meters
Delivery Time:
Negotiable
Brand:
Longrun
Product Description
P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet
Product Description
1. P2.98 with SMD1515 LED and PWM IC has 7680Hz refresh rate, 16bit gray levels and excellent color consistency.
2. Magnet design allows front and rear maintenance, module can be disassembled and taken out though cabinet.
3. Carbon fiber material flat mask with bolt and screw cover design, ensures 140 degree viewing angle and avoid heated distortion problem.
4. LCD panel on cabinet back is optional, can show company information, screen temperature, humidity, system voltage, cumulative operation time etc.
5. Special cabinet bottom design insures good protection for mask and LED.
6. High-precision die casting aluminum material, seamless match, unique suit design.
7. Standard dimension module size: 250mm x250mm, cabinet size 500mm x 500mm.
8. Compatible models: indoor P2.98, P3.91, P4.81, P5.95 and outdoor PH3.91, PH4.81, PH5.95.
1. P2.98 with SMD1515 LED and PWM IC has 7680Hz refresh rate, 16bit gray levels and excellent color consistency.
2. Magnet design allows front and rear maintenance, module can be disassembled and taken out though cabinet.
3. Carbon fiber material flat mask with bolt and screw cover design, ensures 140 degree viewing angle and avoid heated distortion problem.
4. LCD panel on cabinet back is optional, can show company information, screen temperature, humidity, system voltage, cumulative operation time etc.
5. Special cabinet bottom design insures good protection for mask and LED.
6. High-precision die casting aluminum material, seamless match, unique suit design.
7. Standard dimension module size: 250mm x250mm, cabinet size 500mm x 500mm.
8. Compatible models: indoor P2.98, P3.91, P4.81, P5.95 and outdoor PH3.91, PH4.81, PH5.95.
Technical parameter
|
Specification |
Indoor | Outdoor | |||||
| P2.98 | P3.91 | P4.81 | P5.95 | PH3.91 | PH4.81 | PH5.95 | |
| Pixel Pitch(mm) | 2.98 | 3.91 | 4.81 | 5.95 | 3.9 | 4.8 | 5.95 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD3528 | SMD1921 | SMD2727 | SMD2727 |
| Module Size(mm) | 250*250 | ||||||
| Scanning Mode | 1/14 | 1/16 | 1/13 | 1/14 | 1/8 | 1/13 | 1/7 |
| Optimum Viewing Angle |
H:140℃ V:120℃ |
||||||
| Brightness(cd/㎡) | 600-1800 | 600-1500 | 600-1200 | 600-1800 | 1000-6500 | 1000-5500 | 1000-6500 |
| Grey Scale(bit) | 16 | ||||||
| Refresh Rate(HZ) | >1920 | ||||||
| Power Consumption | 200/60 | 160/40 | 160/40 | 160/40 | 200/60 | 200/60 | 200/60 |
| Cabinet Resolution(PX) | 168*168 | 128*128 | 104*104 | 84*84 | 128*128 | 104*104 | 84*84 |
| Cabinet Size(mm) | 500*500*85 | ||||||
| Cabinet Weight(kgs) | 7.3 |
7.85 |
|||||

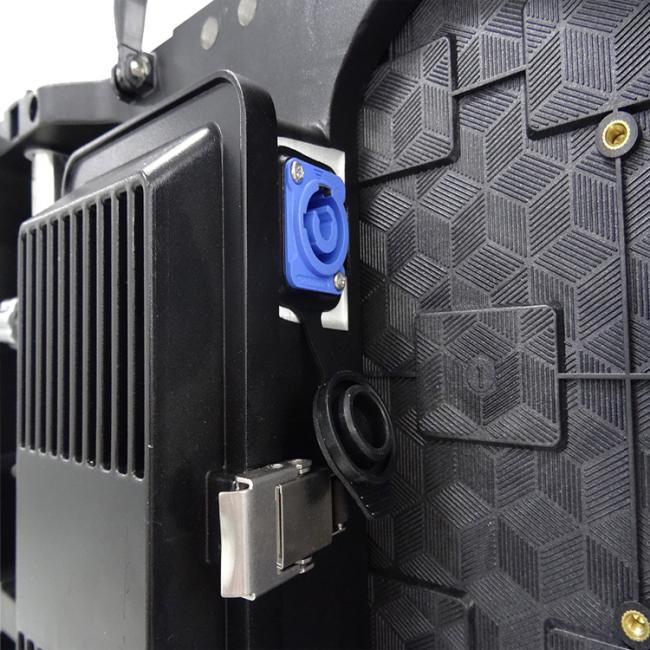

Product Pictures
