LiFePO4 Energy Storage Battery BYD Blade Cell 24.576KWH High Voltage Residential
Price:
Negotiate
MOQ:
1 unit
Delivery Time:
5-8 working days bulk order negotiate
Brand:
Fenigal
Product Description
High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell24.576KWH
FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.
Flexible configuration
High-voltage LiFePO4 battery module
single module is 51.2V 120Ah
Stackable design and easy installation
single module is 51.2V 120Ah
Stackable design and easy installation
Safe and reliable
BYD vehicle grade (LFP) battery:
More safety, longer life cycle
More Usable Energy life up to 10 years；
Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；
More safety, longer life cycle
More Usable Energy life up to 10 years；
Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；
Abundant configuration
Matching with leading inverter brands
Compatible with CAN / RS485 communication interface
Applicable on grid or hybrid on
and off-grid solar energy storage system
Compatible with CAN / RS485 communication interface
Applicable on grid or hybrid on
and off-grid solar energy storage system
Benefits
● BYD original blade battery cell
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record
| Model |
SNE1228BL-LFP
|
SNE1843BL -LFP
|
SNE2457BL -LFP |
| Performance | |||
| Battery type | Lithium-iron phosphate (LiFePO4) | ||
| Nominal Battery Energy(KWH) | 12.28KWH | 18.43KWH | 24.576KWH |
| Nominal Capacity | 120AH | 120AH | 120AH |
| Nominal Voltage(V) | 102.4V | 153.6V | 204.8V |
| Operating Voltage Range(V) | 86.4V-115.2V | 129.6V-172.8V | 172.8V-230.4V |
| Module Number | 2 | 3 | 4 |
| Standard charging current(A) | 30A @ 25°C | ||
| Max. constant charging current(A) | 120A @ 25°C | ||
| Standard discharging current(A) | 60A @ 25°C | ||
| Max. discharging current(A) | 120A @ 25°C | ||
| Cell technology | BYD Blade Lithium-iron phosphate(LiFePO4) | ||
| Depth of discharge(DOD) | 80% | ||
| Design life | 5000times @80%DOD | ||
| Warranty | 5 years | ||
| Warranty Document Supplied | Yes | ||
| Compatible hybrid inverters | SNE6K -GA/SNE8K -GA/SNE10K -GA/SNE12K -GA or other hybrid inverters | ||
| Protection function | |||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | ||
| Display and Communication | |||
| Display | The information of Battery, such as SOC, battery voltage and so on | ||
| Communication | CAN/RS485 | ||
| General Specification | |||
| Dimension (L*W*H)(MM) | 1171*179*600MM | 1171*179*900MM | 1171*179*1200MM |
| Weight(KG) | 118KG | 165KG | 215KG |
| Shipping state voltage(V) | 3.20~3.30V/CELL | ||
| Shipping status SOC | 20%~30% | ||
| Charging Temperature | -20~+50°C | ||
| Discharging Temperature | -30~+60°C | ||
| Short term storage ambient temperat | -20~+35°C(<3 months, 20%~60%SOC) | ||
| Long term storage ambient temperat | -20 ~+30°C(<1 year, 30%~60% SOC) | ||
| Max. operating altitude | 4,000m(Derating above 2,000m) | ||
| Protection degree | IP21,indoor installation | ||
| Relative humidity | 5%-95% | ||
| Cooling | Natural convection | ||
| Noise emission | <29 db | ||
| Certification | TUV/CE/IEC/UN38.3/UL1973 | ||

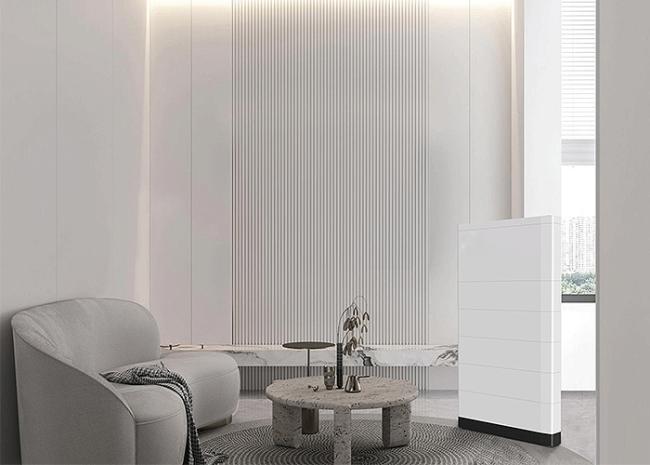

Application
●Villa
● Household
● Farm
● Base Station
● Field Power Supply
● Household
● Farm
● Base Station
● Field Power Supply
