MPO-4LC Duplex OM3 Fiber Optic Breakout Cable | High-Density 40G to 10G Data Center Jumper
Price:
CN¥46.8 - CN¥68.3/PCS
MOQ:
50PCS
Delivery Time:
UP 15 DAY
Brand:
RUIARA
Product Description
MPO-4LC Duplex OM3 Fiber Optic Breakout Cable | High-Density 40G to 10G Data Center Jumper
Product Overview
The essential MPO-4LC Duplex OM3 Breakout Cable is engineered for seamless migration and high-density connectivity in modern data centers. It efficiently converts a single 8-fiber MPO connection (typically 40G/100G QSFP/QSFP+) into four standard 10G LC Duplex links, drastically simplifying cable management and maximizing rack space.
Features
| 40G to 4x 10G Migration | Ideal for connecting QSFP+ switch ports to SFP+ server/switch ports. |
| OM3 Multimode Fiber | Supports 10 Gigabit Ethernet up to 300m and is compatible with 40G/100G short-reach applications. |
| High Density (8-Fiber) | Replaces multiple individual patch cords, reducing cable bulk and improving airflow. |
| Low Loss Performance | Precision MPO connectors and LC Duplex terminations ensure minimal insertion loss for reliable performance. |
| Standard Polarity (Type B) | Pre-configured for standard 10G breakout applications (Transmit-to-Receive mapping). |
| Customizable Jacket | Available in LSZH (Low Smoke Zero Halogen) or OFNP (Plenum) options for various safety environments. |
Specifications
| Parameter | Specification |

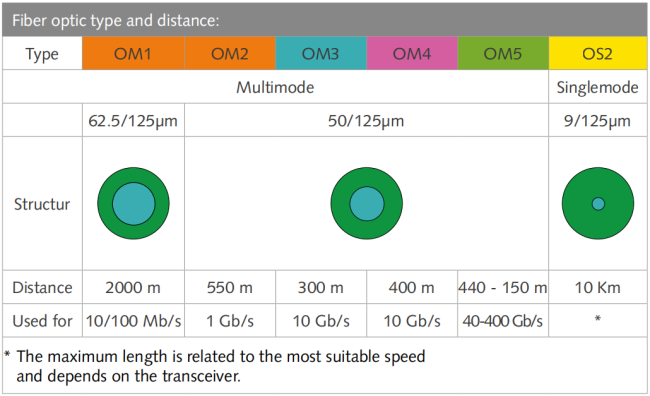

| Fiber Type | OM3 Multimode (50/125μm) |
| Connector A | MPO/MTP (8-Fiber or 12-Fiber) |
| Connector B | 4 x LC Duplex (Total 8 Fibers) |
| Polarity | Type B (Typical for Breakout) |
| Supported Speeds | 10G, 40G (SR4), 100G (SR4/SR8) |
| Insertion Loss | MPO: ≤ 0.6dB; LC: ≤ 0.3dB |
| Cable Jacket | OFNR (Riser) or LSZH (Low Smoke Zero Halogen) |
| Compliance | IEC-61754-7, TIA/EIA-604-5, RoHS |
Applications
This MPO-4LC breakout cable is the go-to solution for structured cabling systems requiring flexible, high-speed conversion:
- Data Center Interconnects: Linking high-speed aggregation switches to lower-speed access switches.
- Backbone Cabling: Used in Main Distribution Areas and Horizontal Distribution Areas (HDA).
- Parallel Optics: Direct connection between 40G QSFP+ transceivers (using 4 lanes) and four separate 10G SFP+ transceivers.
- Storage Area Networks (SAN): Simplifying complex Fibre Channel or FCoE deployments.
Our Commitment to Quality
Every cable is 100% factory-tested to exceed industry standards before it ships.
- 3D Interferometer Tested: Ensures perfect MPO and LC end-face geometry (radius of curvature, apex offset, etc.).
- End-Face Inspection: Guarantees all optical surfaces are free of scratches and contaminants.
- IL/RL Tested: Every fiber core is individually tested, and a full test report is available.
Need a Different Configuration? We Can Build It.
We offer complete customization services, including:
- Custom lengths
- MPO Gender (Male/Pinned or Female/Unpinned)
- Different Polarities (Type A, B, or C)
- Custom fan-out staggering or lengths
- Other connector types
