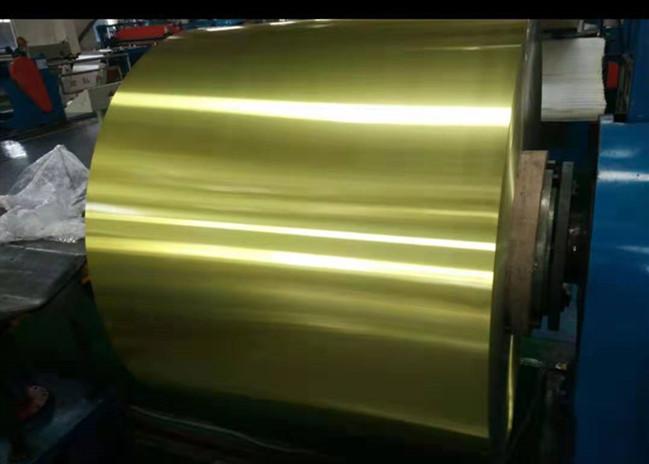

8011 Hydrophilic Golden Heat Exchanger Aluminium Foil Roll Air Conditioner Fin - Stock
8011 Hydrophilic Golden Heat Exchanger Aluminum Foil for Air Conditioner Fin-Stock
Specifications:
| Alloy | 8011, 1100, 1200, 3102, 3003 |
| Temper | O, H22, H24, H26 |
| Type | Bare, hydrophilic ( white, blue, golden) |
| Thickness | 0.08-0.2mm |
| Core ID | 75mm, 150mm, 200mm, 300mm, 400mm |
| Width | 60-1440mm |
8011/H22 Chemical composition and mechanical properties:
| Element | Fe | Si | Cu | Mn | Mg | Zn | Ni | Ti | Al |
| Max | 1.0 | 0.9 | 0.1 | 0.2 | 0.05 | 0.1 | - | 0.08 | Rem |
| Min | 0.6 | 0.5 | - | - | - | - | - | - | - |
| Real | 0.79 | 0.62 | 0.03 | 0.11 | 0.0003 | 0.015 | <0.01 | 0.01 | Rem |
| Properties | Rm(MPa) | A50(%) |
| Max | 150 | - |
| Min | 90 | 6 |
| Real | 117 | 25 |
Application: It is mainly used for household air conditioner,refrigerator,auto AC,auto water tank etc.
Package: Standard Export ply-wood Case/Pallet
Characteristics:
Strong anti-corrosion;
Salt spray test: 1)epoxy coated aluminum foil:500 Hours,class 8 in PH<7;
2)hydrophilic aluminum foil:500 Hours,class 9.5 in PH=7.
Epoxy Coated Golden Aluminum Foil could be used in special environment,like the environment with PH=3,for example: sea,fermentation project,industrial vegetable greenhouse.
Remark: Specific requirement of alloy, temper or specification can be discussed at your request.
