Nylon Braid Double Shield 28AWG 1.4 Version 4K HDMI Cable
Price:
$0.1 to $100/pcs
MOQ:
100PCS
Delivery Time:
5 to 15 days
Brand:
CANEOV
Product Description
Double Shield 28AWG HDMI Wires in 1.4 Version For HD Videos Connection
Description:
HDMI technology continues as the leading digital video, audio and data interface that connects ultra high-definition displays to a wide range of consumer electronics, PC, mobile, automotive and commercial AV devices.
It also has expanded into enabling solutions for industries such as healthcare, military, aerospace, security and surveillance, and industrial automation.
Specification:

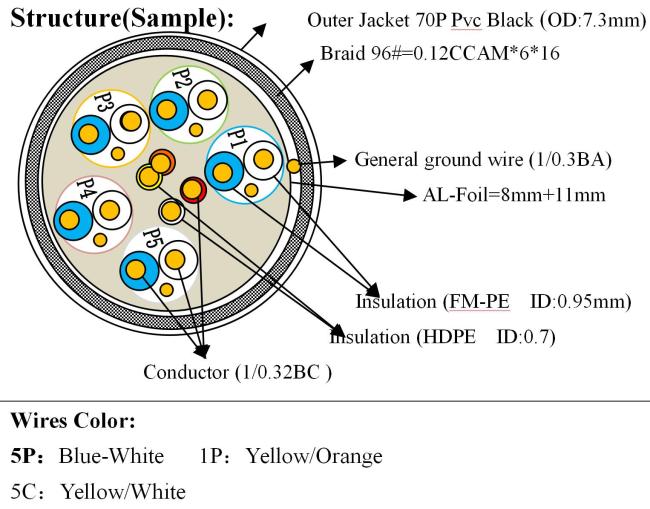

| Product/Spec. | HDMI V1.4 CABLE (1P+D+AL)*5U+1P+2C+AL+D+B/96# | ||||
| Conductor | Structure | BC-1/0.32MM*1P*5 | BC-1/0.32MM*1P | BC-1/0.32MM*2C | |
| Material | A-Level | A-Level | A-Level | ||
| Specification | 28# | 28# | 28# | ||
| Insulation | Material | FM-PE | HDPE | HDPE | |
| Diameter | 1mm±0.03mm | 0.7mm±0.03mm | 0.68mm±0.03mm | ||
| Filler | |||||
| Twist | Twsit pitch | ||||
| Ground | BC-1/0.32MM | ||||
| Shield | Shield | AL(Blue/Brown/Light green/light Purple/Silver) | |||
| Jacket | Material | F-PE | HD-PE | HD-PE | |
| Diameter | |||||
| O-Twisted | AL-Foil | AL | |||
| Filler | |||||
| Ground | BC-1/0.32MM | ||||
| Shield | Shield | B/96#=0.12CCAM(Al-Mg)*6*16 | |||
| Converage | |||||
| O-Jacket | Material | 70P Black/PVC813UL | |||
| Finish OD | OD:7.3mm±0.2mm | ||||
| Surface | Smooth | ||||
