1 In 4 Out HDMI In Splitter 2.0 HDCP 2.2 60HZ HD TV Crossover 1x4 Ports Box Full Ultra 4K HDR 3D

1 in 4 Out HDMI Splitter 2.0 HDCP 2.2 4K60HZ HD TV Crossover 1x4 Ports Box Full Ultra 4K HDR 3D

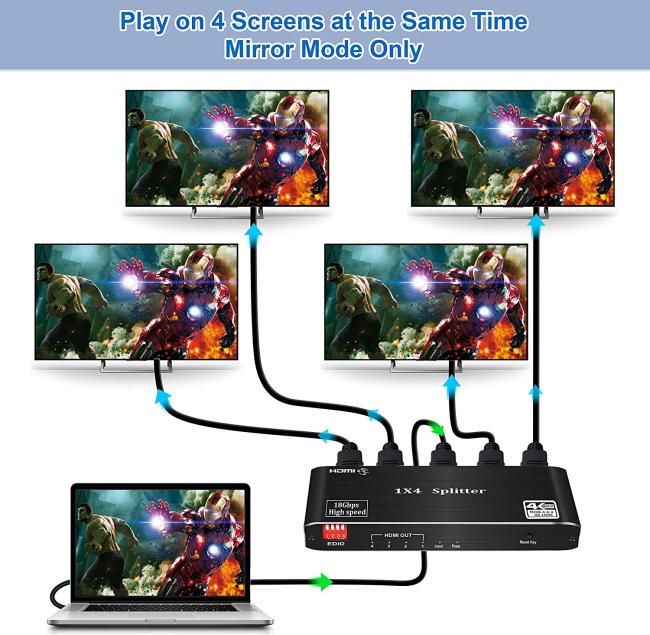

This 1X4HDMI splitter can connect 1 HD signal source to 4 HD display terminals. It can easily distribute the high-definition signal generated by one high-definition signal source to four monitors or projectors that support high-definition signals. In addition, when it is connected to the signal output end of an HDMI cable, the HDMI signal can be amplified. This HDMI splitter supports resolutions up to 3840X2160/60HZ. This product can support EDID management function, with 8 EDID modes, users can choose according to their needs, in addition, this product also built-in IR-TX extended function, through the IR-RX of the amplifier with the distributor Receive infrared remote control instructions to remotely control the signal source

Features

1)Support HDMI2.0b version, HDCP2.2;

2)Support 3D video format;

3)Support the maximum resolution of 3840X2160/60HZ YUV444;

4)TMDS clock is 600Mhz when supporting the highest rate of 6G;

5)Support 8/10/12 bit deep color;

6)Support the use of standard AWG26 cables, the input transmission distance is up to 8 meters, and the output transmission distance is up to 8 meters (1080P and below resolution);

7)Support the use of standard AWG26 cables, the input transmission distance is up to 8 meters, and the output transmission distance is up to 8 meters (4K resolution);

8)Support single signal display, distributed to multiple outputs, for example, it can be input to network set-top box, XBOS, PS4PRO, Samsung & OPP DVD player, etc.;

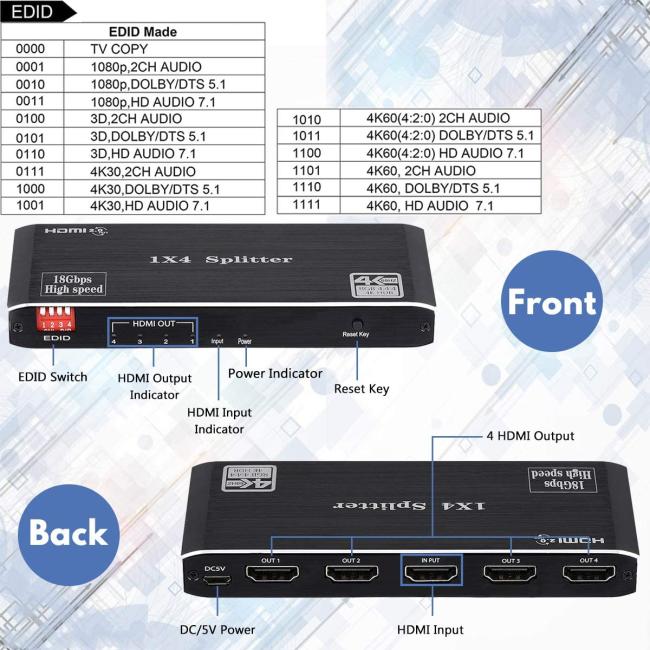

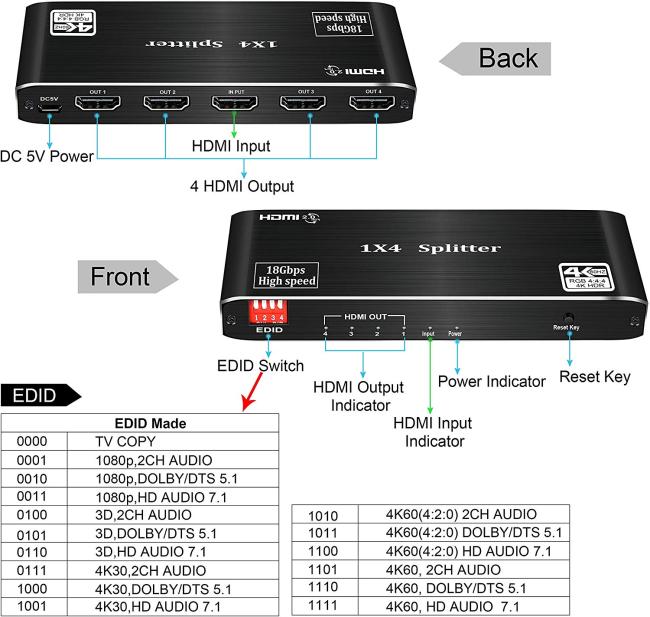

9)Support EDID management;

10)5V/2A power adapter;
