Customize USB 3.1 Engineering Cable AWG22# / 32# 80℃ 30V
Customize USB 3.1 Cable AWG22#/32# 80℃ 30V MOQ 5000 Meters Raw Cable Packed By Roll
Wire Color:
2P: Orange*Purple,Blue*Yellow,Red*Grey,Brown*White
1P+5C:Green*White,Yellow,Blue,Black,Purple,Pink
1C:Red

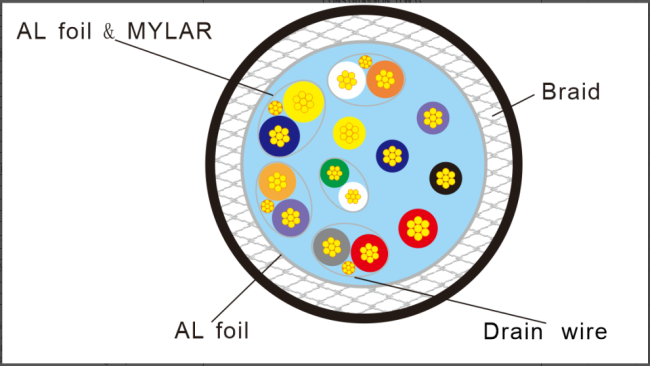

| SPECIFICATION: | (1P/32AWG+D+AL+My)*4P+1P/32AWG+1C/22AWG+5C/32AWG+AB OD4.5mm TPE Jacket |
||||
| ITEM | SPECIFICATION | ||||
|
(1P/28AWG+D+AL+My)* 4P |
1P+5C/32AWG | 1C/22AWG | |||
| CONDUCTOR | AWG | 32AWG | 32AWG | 22AWG | |
| MATERIAL | TINNED COPPER | TINNED COPPER | TINNED COPPER | ||
| SIZE | 7/0.08±0.008㎜ | 7/0.08±0.008㎜ | 17/0.16±0.008㎜ | ||
| INSULATION | MIN.AVG.THICK | 0.13㎜ | 0.12㎜ | 0.13㎜ | |
| MATERIAL | FM-Skin PE | HD- PE | HD- PE | ||
| O . D | 0.58㎜ Nomal | 0.43㎜ Nomal | 1.20㎜ Nomal | ||
| AL Foil & MYLAR | COVERAGE | 100% | |||
| OVERLAP | >25% | ||||
| DRAIN | AWG | 32AWG | |||
| MATERIAL | TINNED COPPER | ||||
| SIZE | 7/0.08±0.008㎜ | ||||
| COLLECTION | Direction & Pitch | S Direction PH=85mm | |||
| Drain | |||||
| Filler | / | ||||
| AL Foil & MYLAR | COVERAGE | 100% | |||
| OVERLAP | >25% | ||||
| BRAID | MATERIAL | AL-Mg wire | |||
| SIZE | 16/9/0.06±0.005㎜ | ||||
| JACKET | AVG.THICK | 0.55mm | |||
| MATERIAL | Matte Surface PVC | ||||
| COLOUR | Black | ||||
| O . D | 4.50±0.20mm | ||||
ELECTRICAL CHARACTERISTICS:
Rated Temperature: 80℃
Rated Voltage:30V
Voltage Withstand:: AC 500V/1min, NO Breakdown
Insulation Resistance: Min. 100Mohms/cable at
20℃
Conductor Resistance: AT 20℃ Max 32AWG:
RF Charactoristic Parameters Complying with
USB3.1 standard.
Stranded<563.2Ω/KM;22AWG:<56.4Ω/KM
PHYSICAL PROPERTIES OF JACKET:
Physical Properties Test on Jacket:
( Aged Test Temperature: 113℃ Time: 168h)
Tensile Strength: Unaged>1500PSI,
Aged>70% of the result with unaged specimens
Elongation: Unaged>100%,
Aged>70% of the result with unaged specimens.
Heat Shock Test on Jacket: NO Cracking
Deformation Test on Jacket: <50%
Cold Bend Test: -20℃ 1h NO Cracking
Spark Test: 100% PASS
