5000 Meters Engineering Cable HD 4K HDMI Cable Bright PVC Jacket
HDR 4K HDMI Cable 19+1 With Ethernet 80℃ 30V VW-1 MOQ 5000m OD 7.3 Raw Cable Packed By Roll
Wire Color:

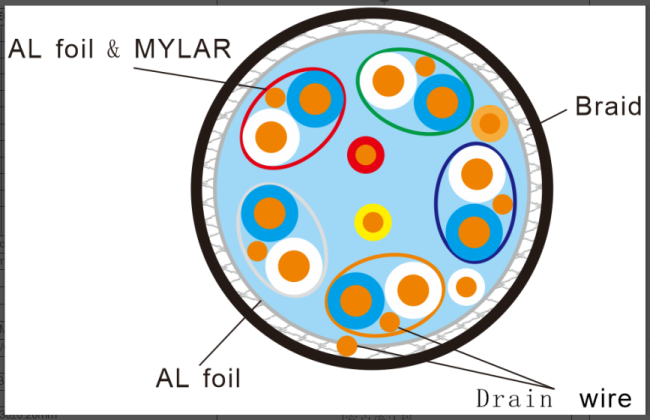

5P: WHITE*BLUE, with 5 different color foil & mylar 4C: Yellow, Orange, White, Red
| SPECIFICATION: | (1P/28AWG+D+AL+My)*5U+4C/28AWG+AEB OD7.3mm PVC Jacket |
|||
| ITEM | SPECIFICATION | |||
| (1P/28AWG+D+AL+My)*5U | 4C/28AWG | |||
| CONDUCTOR | AWG | 28AWG | 28AWG | |
| MATERIAL | BARE COPPER | BARE COPPER | ||
| SIZE | 1/0.32±0.008㎜ | 1/0.32±0.008㎜ | ||
| INSULATION | MIN.AVG.THICK | 0.17㎜ | 0.13㎜ | |
| MATERIAL | FMPE | HDPE | ||
| O . D | 0.95± 0.05㎜ | 0.60± 0.05㎜ | ||
| AL Foil & MYLAR | COVERAGE | 100% | ||
| OVERLAP | >25% | |||
| DRAIN | AWG | 30AWG | ||
| MATERIAL | Bare COPPER | |||
| SIZE | 1/0.254±0.008㎜ with PE insulation | |||
| COLLECTION | Direction & Pitch | S Direction PH=80mm | ||
| Drain | 1/0.32mm Bare copper | |||
| Filler | / | |||
| AL Foil & MYLAR | COVERAGE | 100% | ||
| OVERLAP | >25% | |||
| BRAID | MATERIAL | AL-Mg Alloy wire | ||
| SIZE | 16/6/0.12±0.008㎜ | |||
| JACKET | AVG.THICK | 0.6mm | ||
| MATERIAL | Bright PVC | |||
| COLOUR | Black | |||
| O . D | 7.30±0.20mm | |||
ELECTRICAL CHARACTERISTICS:
Rated Temperature: 80℃ Rated Voltage:30V
Voltage Withstand:: AC 500V/1min, NO Breakdown
Insulation Resistance: Min. 100Mohms/cable at 20℃
Conductor Resistance: AT 20℃ Max 28AWG: Stranded<237Ω/KM
RF Charactoristic Parameters Complying with HDMI cat.2 standard.
PHYSICAL PROPERTIES OF JACKET:
Physical Properties Test on Jacket:( Aged Test Temperature: 113℃ Time: 168h)
Tensile Strength: Unaged>1500PSI,
Aged>70% of the result with unaged specimens
Elongation: Unaged>100%,
Aged>70% of the result with unaged specimens.
Heat Shock Test on Jacket: NO Cracking
Deformation Test on Jacket: <50%
Cold Bend Test: -20℃ 1h NO Cracking
Flame Test: VW-1 PASS
Spark Test: 100% PASS
