DVI 4P Digital Single Link Cable Half Matt PVC Jacket

DVI Cable 4P AWG28# 30V MOQ 5000m OD 8 Raw Cable Packed By Roll DIGITAL SINGLE LINK CABLE

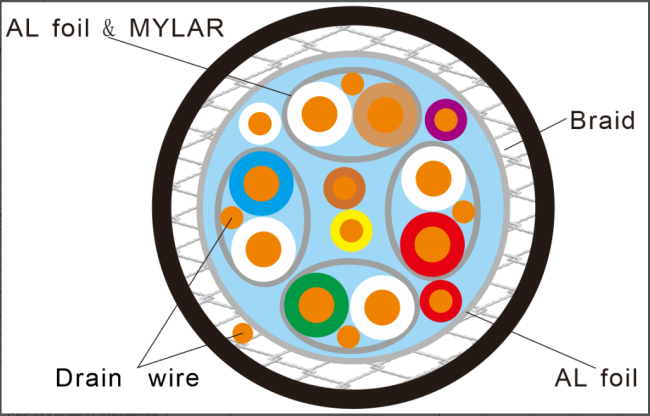

Wire Color:

4P: Blown*White, Red*White,Green*White,Blue*White,

1P+3C: YELLOW*ORANGE, WHITE, RED,PURPLE

ELECTRICAL CHARACTERISTICS:

Rated Temperature: 80℃ Rated Voltage:30V
Voltage Withstand:: AC 500V/1min, NO Breakdown
Insulation Resistance: Min. 100Mohms/cable at 20℃
Conductor Resistance: AT 20℃ Max 28AWG: Stranded<237Ω/KM
RF Charactoristic Parameters Complying with DVI standard.

PHYSICAL PROPERTIES OF JACKET:

Physical Properties Test on Jacket:( Aged Test Temperature: 113℃ Time: 168h)
Tensile Strength: Unaged>1500PSI,
Aged>70% of the result with unaged specimens
Elongation: Unaged>100%,
Aged>70% of the result with unaged specimens.
Heat Shock Test on Jacket: NO Cracking
Deformation Test on Jacket: <50%
Cold Bend Test: -20℃ 1h NO Cracking
Flame Test: VW-1 PASS
Spark Test: 100% PASS

The question you may concern:

1. What's your products' advantages?
1.10-year cable supply chain ;

2. Pursuit of high quality and low price ;

3.Good cable and good service

2. How to control the products quality?
1. Check and confirm using the standard material before the bulk production.
2. Tracing all of the phase of production from the beginning to the end.
3. Check the quality again before packing.4. Checked the packing before shipment.

3. How will you deliver my goods to me?
Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo
and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

4. May I know the status of my order?
Yes .The order information and photos at different production stage of your order
will be sent to you and the information will be updated in time.

5. Can you put my brand name (logo) on these products?
Yes! The professional OEM services will be welcomed to us. Our factory accepts to
make the logo free for bulk orders.
