Self Moving Mobile Aerial Work Platforms Scissor Type Height 14 Meters
Self-Moving Mobile Aerial Work Platforms,Scissor-Type, Platform Height 14 Meters
The scissor-type aerial work platforms set four wheel movement and two wheel traction in a body, with higher stability, wide operating platform and high load capacity, so that the aerial work range is larger, and suitable for many people to work at the same time. It makes aerial work more efficient, more secure. The products.
The aerial work platforms widely used in urban construction, oil field, transportation, municipal, factory and other industries of aerial work.
Product Highlights:
- Flexible operation and transportation
Flexible fuselage, small turning radius and wide working area
Standard forklift hole and folding guardrail design, easy for transportation with high efficiency
Automatic control, easy to operate
Balance alarm function, safe and reliable
Imported hydraulic drive, walking smoothly
- More reliable performance
The battery voltage warning function ensures battery life
Pit protection and level protection system, to give a safe working experience
Bumper strip protection, anti - scratch more completely
- Less maintenance costs
Fault self-test function, quickly locate the fault source
Double side door configuration, simple maintenance
High degree of spares standardization, spare parts replacement is fast
Technial Paremeters:
| Model | HDJD1412DC | |||||||
| Dimensions | Properties | Power | ||||||
| Maximum working height | 15.8m | Number of people allowed on the platform |
2(indoor)/ 1(outdoor) |
Battery voltage/capacity | 12V×4/280Ah | |||

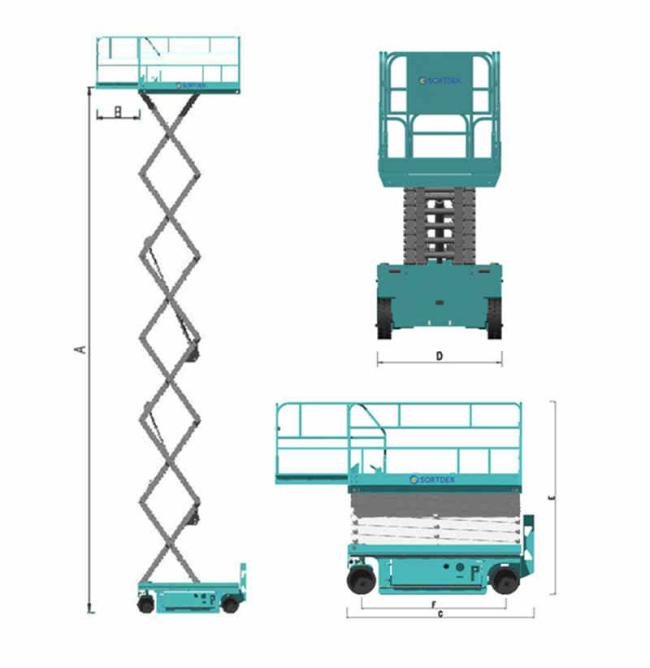

| Maximum platform height (A) | 13.8m | Load capacity of platform | 227kg | Power unit | 24V DC | |||
| Maximum horizontal extension (B) | 0.9m | Running speed (folding condition) | 3.2km/h | Driving pattern | 2WD,frount wheel | |||
| Length under folding condition (C) | 2.78m | Running speed (lifting condition) | 0.8km/h | Charger input voltage | 100~240V AC | |||
| Width under folding condition (D) | 1.27m | Total rising time of platform (no load) |
83s~92s | Charger output current | 30A | |||
| Height(E) | Folding condition (guardrail folding) |
1.96m | Total dropping time of platform (no load) | 55s~65s | Brake | 2 rear wheel | ||
| Foldinng condition (guardrail unfolding) |
2.60m | Climbing ability | 25% | Hydraulic system volume | 15L | |||
| Wheel base (F) | 2.22m | Inside/outside steering radius | 0/2.64m | Weight | ||||
| Ground clearance | 0.1m | Allowable dip Angle during operation (front&back/left&right) | 3°/1.5° | Machine weight (indoor/outdoor use) | 3360kg | |||
| Dimension of platform(L×W×H) | 2.64×1.15×1.1m | Tire specification/type | 380×125mm/solid | |||||
Configuration:
| Standard configuration | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Optional configuration | ||
|
|
|
