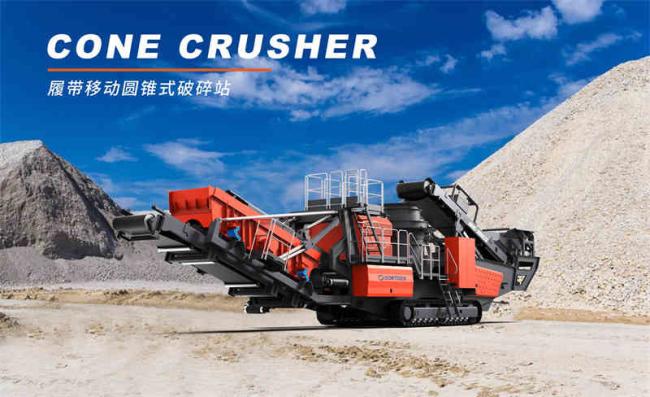

300 T/H Crawler Mobile Cone Crusher With Lamination Technology
Crawler Mobile Cone Crusher With Lamination Technology, External Working Power Supply
Hefei Sortdek Vision Technology Co., LTD., as the integrated solution provider in the field of ore and engineering material treatment, focuses on the R&D and service of material crushing, screening and conveying equipment,relying on the strong production strength of HFM Group, we are committed to providing intelligent one-stop material crushing system solutions.
We choose the crawler mobile crusher as the specialized crushing machine, adding the leveling device, optimizing the electric control system, so that the adaptability of the harsh working environment is further enhanced; adopting inblock casting super rotor, high speed, more stable. The main products are crawler mobile jaw crusher, mobile impact crusher, mobile cone crusher, mobile screen machine and other heavy equipments.
Features & Highlights:
- Cone crusher is widely used in mining, cement factory, sand and stone industry, for medium and fine crushing of various mining rocks with pressure below 350 mpa, such as iron ore, non-ferrous ore, basalt, granite, limestone, sandstone, cobblestone and so on.
- Excellent grinding chamber design, excellent lamination technology, large yield, good grain shape.
- Unique hydraulic leveling device and pre-screening system, the biggest capacity amoung the same level equipment.
- Large crushing ratio and high production efficiency.
- One-button start, the system automatically monitors the oil temperature to ensure the safety of the equipment and prolong the service life of the equipment.
- Stepless adjust discharge port by remote through hydraulic system , safe and simple to meet the requirements of various product specifications.
- Wear parts consume less, maintenance is simple, operation cost is low.
Technial Paremeters:
| Feeding Hopper | Feeding capacity | 400 t/h | Finished Product Belt | Length×width | 6000×1000 mm |
| Volumn | 2 m3 | Discharging height | 2800 mm | ||
| Length×width | 2200×1768 mm | Power | 7.5 kw | ||
| Power | 2.4×2 kw | Material Return Screen | Length×width | 4000×1500 mm | |
| Feeding Belt | Length×width | 6250×1000 mm | Power | 3.7×2 kw | |
| Feeding height | 2700 mm | Transition Belt | Length×width | 2450×650 mm | |
| Power | 11 kw | Power | 3 kw | ||
| Crusher | Cone crusher | CC300(Multi) | Material Return Belt | Length×width | 10370×650 mm |
| Maximum feeding size | 210 mm | Power | 5.5 kw | ||
| Discharging size | 0-45 mm | Whole Machine | Model of crawler chassis | Shizhen 60T | |
| Crusher weight | 15 t | Engine power | 118 kw | ||
| Crusher oil station power | 13 kw | Whole machine weight | 57 t | ||
| Crusher power | 250 kw | Processing capacity | 120-300 t/h | ||
| Main Belt | Discharging height | 3300 mm | Crusher power | 300 kw | |
| Length×width | 11380×1000 mm | Transportation size | 19200×3400×3800mm | ||
| Power | 11 kw |
