Mobile Type Impact Crusher For Stone And Construction Waste Crushing

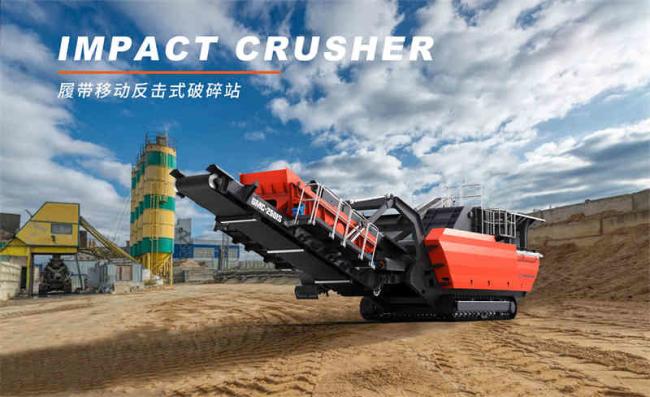

Crawler Mobile Type Impact Crusher Used For Stone And Construction Waste Crushing
Hefei Sortdek Vision Technology Co., LTD., as the integrated solution provider in the field of ore and engineering material treatment, focuses on the R&D and service of material crushing, screening and conveying equipment,relying on the strong production strength of HFM Group, we are committed to providing intelligent one-stop material crushing system solutions.
We choose the crawler mobile crusher as the specialized crushing machine, adding the leveling device, optimizing the electric control system, so that the adaptability of the harsh working environment is further enhanced; adopting inblock casting super rotor, high speed, more stable. The main products are crawler mobile jaw crusher, mobile impact crusher, mobile cone crusher, mobile screen machine and other heavy equipments.
Features & Highlights:
- Impact crusher is suitable for coarse and medium crushing of rock and construction waste whose compressive strength is not more than 150MPa. It has the advantages of large output, high crushing efficiency and low energy consumption.
- The integrated casting super rotor has strong crushing capacity, less energy consumption and large output.
- METSO type main machine, with coarse crushing and medium crushing double functions, a wide range of applications.
- The crushed stone granule is good and the yield is large.
- The wear-resisting parts are fixed with screws, easy to disassemble and assemble.
- With self-moving power, combined with external working power supply, the system is simple, easy to maintain, energy saving and environmental protection.
- Easy to transport, wireless remote control for moving, can adapt to mountain, wetland and other complex working environment.
Technial Paremeters:
| Feeding Hopper | Maximum feeding size | 700 mm | Tail Belt | Length×width | 3300×500 mm |
| Feeding height | 3850 mm | Power | 3 kw | ||
| Volumn | 6 m3 | Material Return Screen | Length×width | 3500×1500 mm | |
| Vibrating Feeder | Length×width | 3900×1220 mm | Power | 3.7×2 kw | |
| Power | 3.7×2 kw | Finished Product Belt | Length×width | 7000×1500 mm | |
| Feeding capacity | 500 t/h | Power | 7.5 kw | ||
| Crusher | Impact Crusher | 250I | Transition Belt | Length×width | 2000×650 mm |
| Feeding inlet of crusher length×width | 1360×930 mm | Power | 3 kw | ||
| Maximum feeding size | 700 mm | Material Return Belt | Length×width | 8900×650 mm | |
| Rotor size | 1240×1270 mm | Power | 5.5 kw | ||
| Crusher weight | 18 t | Whole Machine | Engine power | 118 kw | |
| Crusher power | 250 kw | Whole machine weight | 54 t | ||
| Main Belt | Discharging height | 3250 mm | Processing capacity | 150-300 t/h | |
| Length×width | 11000×1200 mm | Transportation size | 17500×3700×3800mm | ||
| Power | 15 kw | Crusher power | 298 kw |
