Q235 45# 12mm 17mm 22mm Steel Formwork Hot Rolling Tie Rod Bar ISO9001 Certification
Q235 45# 12mm 17mm 22mm Steel Formwork Hot Rolling Tie Rod Bar ISO9001 Certification
Concrete Formwork Tie Rod is one of the most important accessories in pouring shear wall project. Together with wing nut, concrete formwork tie rod, water stoper, plastic pipe, cone and washer plate to be the whole wall tie system, to fasten the formwork panels tightly during concrete pouring process. Tie rod is a component used to support and fix the formwork during concrete construction.

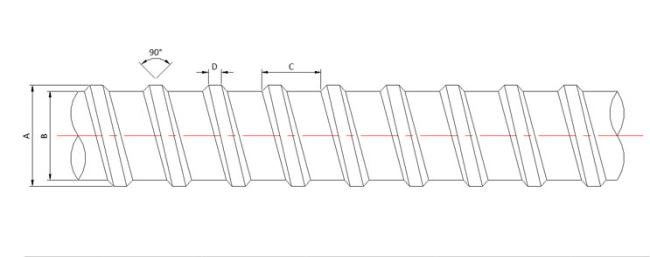

- Sizes of formwork tie rod:
| Size | A | B | C | D | Material | surface |
| 10/12 | 12mm | 10mm | 4mm | 1mm | Q235/45# | balck/galvanized |
| 15/17 | 17mm | 15mm | 10mm | 3mm | Q235/45# | balck/galvanized |
| 20/22 | 22mm | 22mm | 10mm | 3mm | Q235/45# | balck/galvanized |
- Specification of formwork tie bar:
| Product name | Formwork tie rod for Consturction |
| Material | carbon steel Q235/345,45 # steel |
| Diameter | 10/12mm, 15/17mm, 20/22mm |
| Surface Treatment | Black,Electric Galvanized,Powder coated,Painted |
| Process | Thread rolling |
| Length | 1-6m |
| Inspection equipment | Breaking test machine,chemical analysis machine,faigue test machine,hardness test machine |
| Package | Packed by steel strip and steel pallet,ton bags or per your request |
| Delivery | 10-15days after revceive sdvance payment |
| Sample | Available |
| OEM | Available |
- Features:
1) Safe and longer system
2) Easy and quick to erect efficient ,save time
3) Very little material required
4) Economic and versatile design
5) Maintenance free and always ready for use

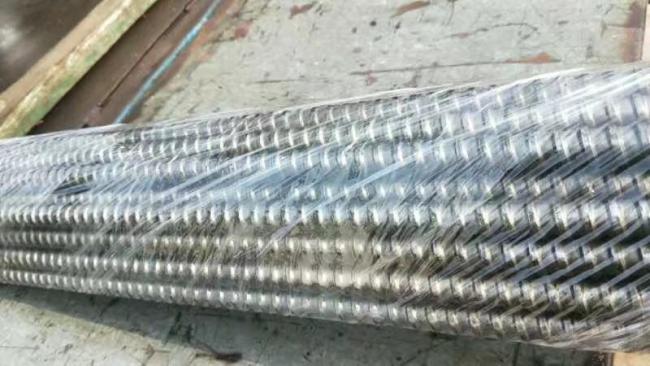

- Package of formwork tie rod
