Construction Pine Wooden H20 Yellow Painting Lumber Scaffold Beam
Construction Wooden H20 Yellow Painting Lumber Beam

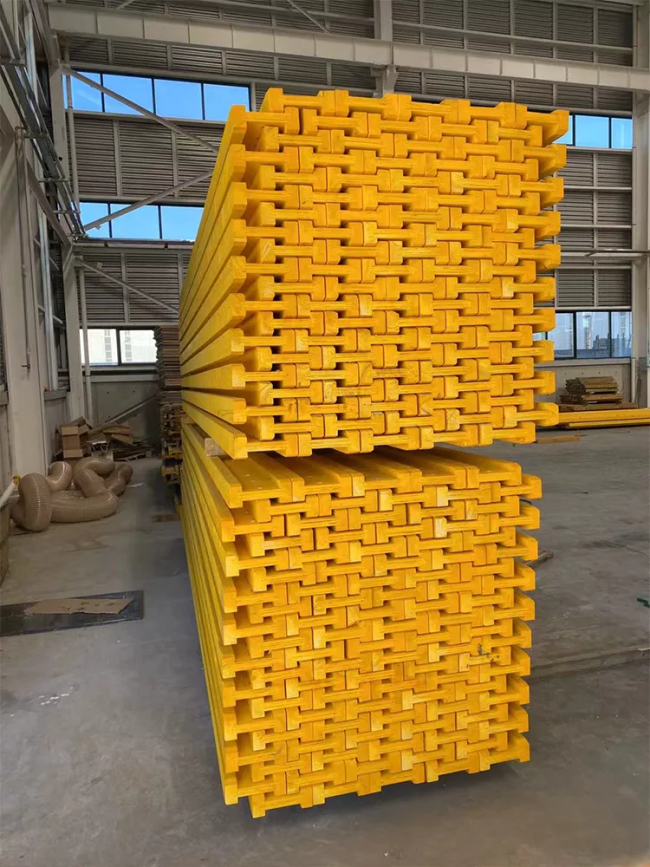

H20 Beam is a very impoartant part of formwork system and has been widely applied in construction.
As required, standard holes can be drilled in the two ends of timber beams. We can lengthen the timber beam by end-to-end joint. According to customers' demand, we can produce timber beams with any length.
The coating paint – resistance of the coating is 3-5 years. (high adhesion to wood, resistant to ultraviolet radiation, sunlight, atmospheric oxygen, humidity, rain, frost, snow, temperature fluctuations and air pollution, has a high vapor permeability ‘breathable’ ability).
Glue (Dispersion water-based adhesive for wood industry)
Protection of beams of special cross-cut lacquer(Water-dispersion of colored lacquer based on acrylic. Is designed to protect the end cuts of timber and plywood from cracking and moisture absorption. Resists growth of fungi, mould and blue Also according to the customer beam can be protected from rain, a special packaging film.)
| product | Beam height(mm) | Flang Wall(mm) | Web Thickness(mm) | Length(m) | Perm. Bending Moment(KN.m) | Perm. Shear Force(KN) | Perm. Deflection | |
| Width | Thickness | |||||||
| H20 Timber Beam | 200 | 80 | 40 | 27 | 3.0 | 5.0 | 11.2 | 1/500 |
1. Question: What's your MOQ(minimum order quantity)?
Answer: 1000sets.
2. Question: What's your packing methods?
Answer: Packed into bundle, and rest in bulk.
3. Question: What's your payment terms?
Answer: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C 100%, or negotiate according to the order status
4. Question: What's your delivery time?
Answer: 20-35 days after received the advance payment or L/C.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
