1310nm 1330nm Free Space Isolator Tosa Bosa Data Center High Isolation
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
ORC/OEM
Product Description
1310nm / 1490nm / 1550nm free space isolator 0.8mm / 0.6mm / 0.5mm diameter high isolation
ORC provides kinds of Isolator, 1310nm/1550nm/1480nm Polarization Insensitive, special wavelength such as 1060nm, 850nm, 980nm produced on customers request.Mini Polarization Insensitive Isolator, PM Isolator, pigtail free space isolator Receptacle free space isolator also provide.
Feature
- High Isolation
- Polarization Dependent
- Optical Path Epoxy Free
- Compact Size
- Versatile Package
Application
- Optical Transmitter
- Laser Diode Packaging
Specifications(standard)
| Parameter | Unit | Single Stage | Dual Stage | |
| Center Wavelength | 1310, 1490, 1550 or CWDM wavelength | |||
| Isolation (at 25℃) | Type | 40 | 55 | |
| Min | dB | 30 | 45 | |
| Insertion Loss (at 25℃) | Type | dB | 0.2 | 0.4 |
| Max | dB | 0.3 | 0.6 | |
| Clear Aperture | mm | 0.8, 0.6, 0.5 or customer | ||
| Optical Power | Max | mW | 300 | |
| Operating Temperature | ℃ | -40 to +85 | ||
| Storage Temperature | ℃ | -40 to +85 | ||

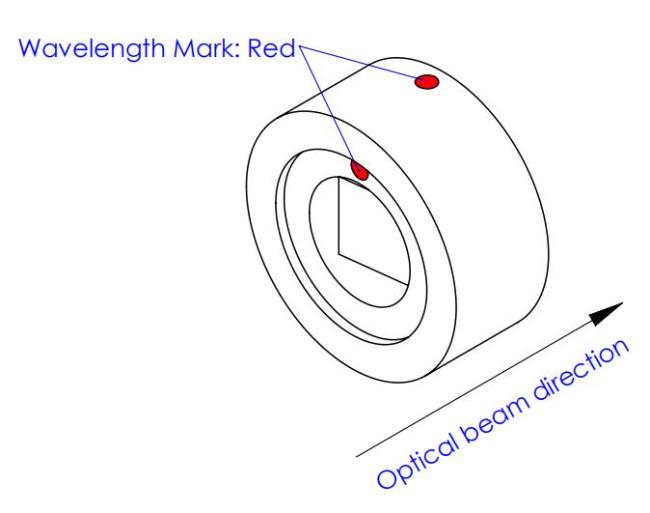

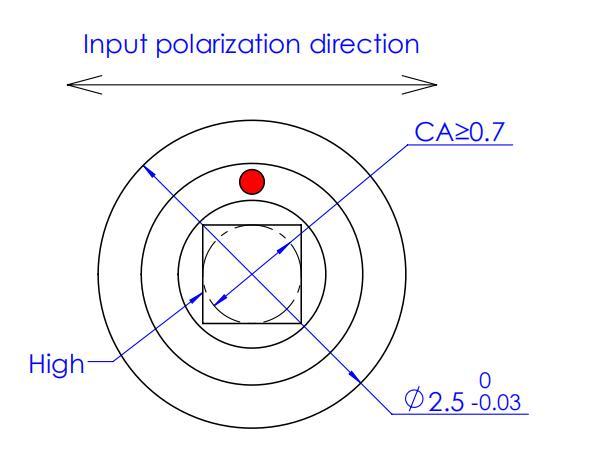

1310nm Free Space Isolator Drawing
