4 Channels WDM MUX DEMUX , AWG CWDM MUX Mux Demux Dwdm 20nm Channel Spacing
Price:
Negotiation
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
4CH AWG CWDM MUX 1271/1291/1311/133 QSFP+ CWDM4 100G/200G
4CH Mux AWG, 1271/1291/1311/1331, Φ0.38mm white Corning ClearCurve ZBL fiber, Receptacle: L5±1mm, 1271: L4±1mm, 1291: L3±1mm, 1311: L2±1mm, 1331: L1±1mm
- Performance Specifications
| Parameters | Unit | Spec | Notes | ||
| Channels Number | Chs | 4 | 1. Comply with RoHS requirement. | ||
| Channel spacing | nm | 20nm | |||
|
Center Wavelength |
nm |
1271/1291/ 1311/1331 |
|||
|
CWL Accuracy@25℃ |
nm | ± 1 | |||
|
Bandwidth |
1dB Bandwidth | Min | nm | 10 | |
| 3dB Bandwidth | 14 | ||||
|
Insertion Loss |
Passband (ITU±2nm) | Max | dB | 3.5 | |
|
Uniformity |
ILmax – ILmin (All channels) | Max | dB | 1.0 | |
| Ripple | Passband (ITU±5nm) | Max | dB | 1.3 | |
|
Polarization Dependant Loss (ITU±1nm) |
Max | dB | 1.0 | ||
|
Temperature Dependant Loss(0~80℃) |
Max | dB | 0.5 | ||
|
Operating Temperature |
℃ | -5 to 80 | |||
|
Storage Temperature |
℃ | -40 to 85 | |||

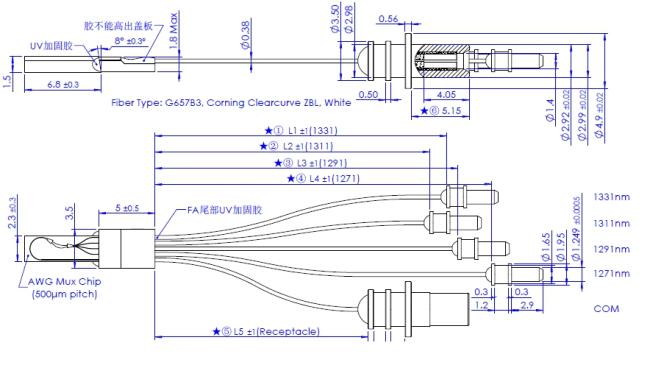

- Dimensions Diagram (Unit: mm, X:±0.5, .X:±0.1, .XX:±0.05)
![]()
NNote:
Receptacle and LC ferrule must have protective dust cap.
2. SN label sticks on the Receptacle cap.
3. Dimensions with ★ are key dimension.
- Endface Requirements
- Endface Visual Inspection Requirements (200x)
| Zone | Diameter | Scratches (QTY, Width) | Removable Contaminations | Others Defects (QTY, Diameter) |
| A | 0~25μm | NONE | NA | NONE |
| B | 25~120μm |
any ≤3μm, NONE >3μm |
any <2μm, 5≤2μm~5μm, NONE >5μm |
|
| C(EPOXY) | 120~130μm | NA | NA | |
| D | 130~250μm | NA | NONE >10μm | |
| E | 250~400μm | NA | NA |
- Endface 3D Geometry Requirements
| Radius of Curvature | Apex Offset | Fiber Height |
| 7≤R≤25mm | 0~50μm | -100~0nm |
