8F Harsh Environment Cable Waterproof Fiber Optic Cable , LC - LC Upc Patch Cord With Fannout Kit
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description
8F LC/UPC-LC/UPC SM waterproof harsh environment cable assemblies with fannout kit
ORC harsh environment products are designed and manufactured specifically for use in adverse conditions and harsh environment applications. Each product is tested and certified to very strict tolerances and rigorous specifications, ensuring acceptable performance, durability, and longevity in the field.
Features
◆ Can be exposed to extreme high/low temperatures, shock, vibration, radiation, corrosive conditions, high electromagnetic interference (EMI), high radio-frequency interference (RFI), and/or pressure extremes.
◆ Superior optical performance
◆ Specialized strain relief for intense tensile loading
◆ Variety of configurations to fit any application need
Application
◆ Remote Radio Heads(RRH)
◆ Fiber-to-the-X(FTTC, FTTH, FTTD)
◆ CATV, LAN, WAN and PONS
◆ Data center and Processing Networks
Specification
1. Optical Performance
| Item | SM | MM | ||
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) | |
| PC | <=0.20 | >=50 | <=0.30 | >=25 |
| APC | <=0.30 | >=60 | N/A | N/A |
2. Geometry Parameters
| UPC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 7.0mm | 25.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |

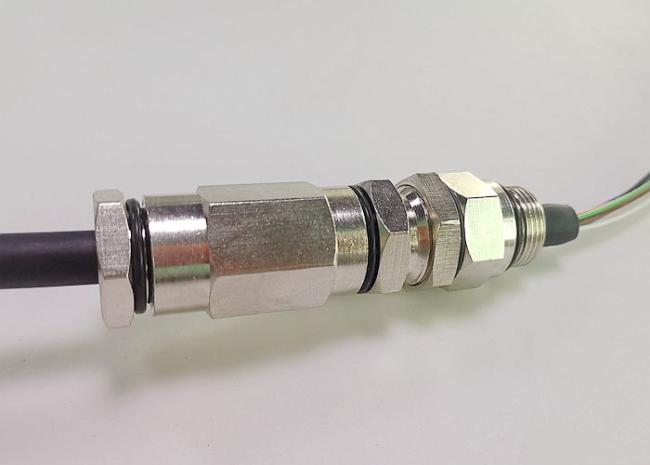

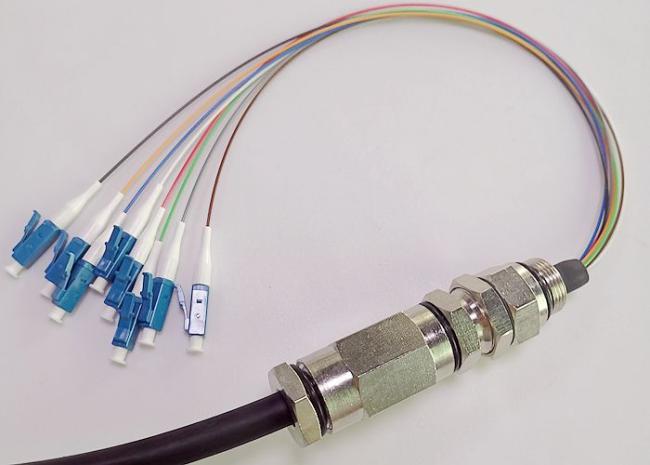

3. Details Picture
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
