OM3 Fiber Optic Patch Panel Rack Mount For Drawer Rack LC Uniboot HD Patch Cord
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

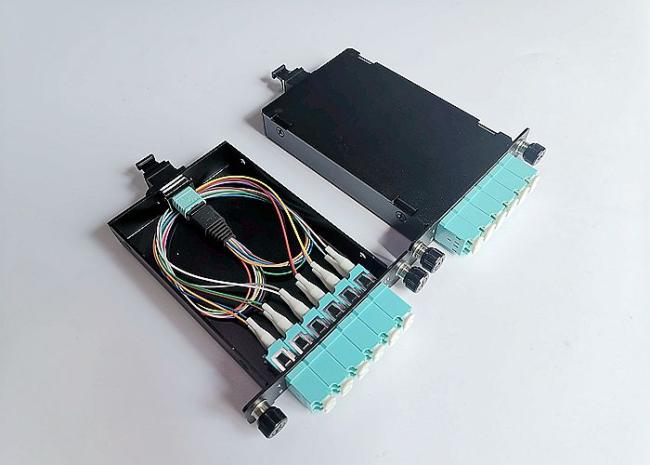

12F data center enclosure OM3 MPO-LC cassette for drawer rack with LC uniboot HD patchcord
Good performance, space saving MPO fiber optic cassettes, are ideal products for connecting multi-fiber MPO trunk cables and splitting them out to various patch cables. It is an indispensable part for the data center racks. Each cassette comes fully populated internally with pre-terminated and tested MPO breakout/harness cables, and are designed for fast and easy field installation with minimal training. Available in Multimode OM1(62.5/125), OM2 (50/125), OM3 (50/125) & Singlemode OS1 (9/125) models. Apart from the existing models, ORC also can design and produce cassettes accroding to the end users requirement.
Features
◆ 12 or 24 Fiber Ferrule MPO/MTP®
◆ Female and Male MPO/MTP® option of Connectors
◆ Plug and Play, Small Form Factor
◆ Cassette comes fully populated internally with pre-terminated MPO breakout/harness cables inside
◆ Each cassette is Pre-Tested
◆ Support OEM&ODM
Application
◆ Data Centre Infrastructure
◆ Fiber Optic Network Infrastructure
◆ FTTx in passive optical network
◆ IDF/MDF with space constraints
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -10 | 70 | °C |
| 2 | Storage Temperature | -40 | 85 | °C |
2. Optical Performance
| Type | Wavelength | I.L Max | R.L Min |
| Elite MTP-LC(MM) | 850nm/1300nm | 0.35dB | 30dB |
| Elite MTP-LC(SM) | 1310nm/1550nm | 0.35dB | 50dB |
| MPO-LC(MM) | 850nm/1300nm | 0.6dB | 20dB |
| MPO-LC(SM) | 1310nm/1550nm | 0.75dB | 50dB |
3. Geometry Parameters
| MT | ||||
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000mm |
∞ |
|
| Short Axel | 50mm |
∞ |
||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||
4. Details Picture
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
ORC Production Show
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
