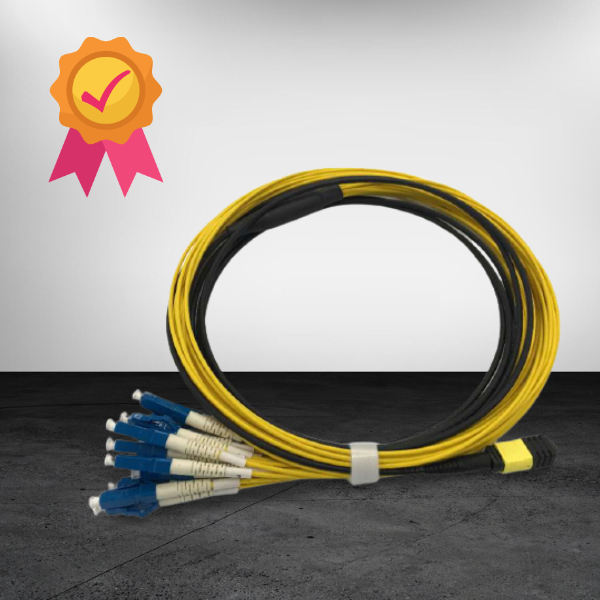

MPO - LC SX Fiber Optic Patch Cord Single Mode For QSFP optical Transceiver
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description
MPO - LC SX Fiber Optic Patch Cord Single Mode For QSFP optical Transceiver
Optic River Communication develops and provides full range of fiber optic patch cords, jumpers pigtails, welcome to check us for more.
With professional MTP/MPO manufacturing staff, adanved equipment imported from Janpan and Germany, we produce high standard quality MTP MPO products.
The MPO cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. Optic River Communication fiber optic cable meets RoHS and UL regulations, and all fiber patch cables connectors are 100% optically tested for insertion loss and geometry checking to ensure nice quality.
The MPO cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. Optic River Communication fiber optic cable meets RoHS and UL regulations, and all fiber patch cables connectors are 100% optically tested for insertion loss and geometry checking to ensure nice quality.
Main Features of MPO-LC Fber Optical Patchcord
◆ High Performance in IL & RL
◆ 4,8,12 and 24 fiber connector terminations and assemblies
◆ Designed for low loss and standard loss SM and MM applications
* Economical solution for mass-termination of fiber
◆ Suitable for MPO/MTP application
◆ Ruggedized round cable, oval cable and bare ribbon options available
◆ Color coded housings available to differentiate fiber type, polish type and/or connector grade
Application
◆Jumper Connection
◆ Da ta Center Cabling
◆ MPO cassettes, racks
◆ Fiber optic telecommunication
◆ 40G, 100G and QSFP transceiver
MPO/MTP and LC/SC Fiber Optical Connector Performance
| Connector Type | 12-Fiber Or 24-Fiber MPO/MTP (non-pinned) |
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.50 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.70 dB |
| Return loss (MTP/MPO SM) | PC >40dB; APC> 60dB |
| Insertion Loss, Typical (LC/SC) | ≤ 0.20 dB |
| Insertion loss, max. (LC/SC) | ≤ 0.30 dB |
| Return loss (LC/SC SM) | PC >55dB; APC> 60dB |
| Durability(500 Matings) | < 0.2dB |
