24 Fiber MPO Patch Cable Multimode High Tensile Strength Violet Cable Color
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description
24 fiber MPO to MPO female patch cord cable MM OM4 3.0mm LSZH patch cable
Fiber Optic patch cords terminated with MPO/MTP® connectors are specifically designed for Data Center system. MPO/MTP® connectors, using the MT ferrule, can increase the density of 4 to 144 fibers compared to traditional, single-fiber optic connectors.
Features
◆ Different type of optical fiber available(G.652D, G.657, OM1, OM2, OM3 or OM4, OM5)
◆ Compact LSZH cable standard; OFNP cable also available
◆ Compliance with the 40G and 100G protocols
◆ Compliance with Telcordia GR-1435-CORE Compliant
◆ High tensile strength and crush resistance
Application
◆ Backbone installation
◆ Optical fiber communication system, CATV, LANs and WANs, FTTx
◆ 40G and 100G optics system, QSFP module
◆ Telecommunication network
◆ FTTx, FTTD, FTTB, FTTH networks
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Optical Performance | |||||
| Item | Parameters | ||||
| MTP/MPO Connector | SM (1310nm/1550nm) | MM (850nm) | |||
| Standard | Low Loss | Standard | Low Loss | ||
| Insertion Loss | Typical | 0.50dB | 0.20dB | 0.50dB | 0.20dB |
| Maximum | 0.70dB | 0.35dB | 0.70dB | 0.35dB | |
| Return Loss | ≥60dB for APC | ≥20dB for PC | |||
| ≥40dB for PC | -- | ||||
| Male/Female | Male: with Pins, Female: without Pins | ||||
3. Geometry Parameters
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000nm |
∞ |
|
| Short Axel | 50mm |
∞ |
||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||

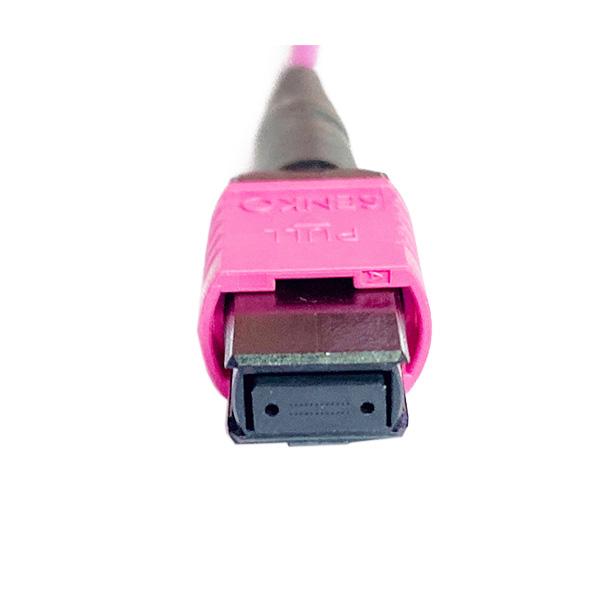

4. Details Picture
Standard Package
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: What's the difference between MTP and MPO connector?
A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.
2. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
3. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
