48 Channel 100GHz Optical Mux Demux , Athermal AWG Dwdm Device Flat Top Type

Price Negotiable

Price: Negotiation

MOQ: Support sample order

Delivery Time: 3-7 work days

Brand: ORC/OEM

Product Description

DWDM device 48 channel 100GHz Athermal AWG Module Gaussian and flat-top type

Athermal AWG is an integrated PLC component that multiplexes or demultiplexes 40, 44, 48 channels onto a single fiber for Dense Wavelength Division Multiplexing(DWDM) applications. ORC provides AWG module for the C-Band with standard channel spacings of 100GHz.

Feature

- Athermal design operates over operating temperature range

- High stability and reliability

- Low insertion loss, high isolation increase system margin

- Mux and Demux functionality

Application

- DWDM transmission

- Metro Area Networks

- Long Haul Networks

- PON networks

- Building blocks for ROADM and VMUX

Specification

No.	Parameter	Unit	Specification	Note
1	Pass Band Profile		Flat-top
2	Nominal Channel Spacing	GHz	100
3	Output Number of Channels		48
4	Operating Band		C Band
5	Clear Passband	GHz	±12.5
6	Wavelength Accuracy	pm	±40
7	1dB Bandwidth	nm	≥0.4
8	3dB Bandwidth	nm	≥0.6
9	20dB Bandwidth	nm	≤1.2
10	Optical Insertion Loss	dB	≤5.0
11	Insertion Loss Uniformity	dB	≤1.0
12	Ripple	dB	≤0.5
13	Polarization Dependent Loss	dB	≤0.4
14	Adjacent Channel Isolation	dB	≥25
15	Non-adjacent Channel Isolation	dB	≥32
16	Total Crosstalk	dB	≥22
17	Polarization Mode Dispersion(PMD)	ps	≤0.5
18	Chromatic Dispersion	ps/nm	±20
19	Optical Return Loss	dB	≥40

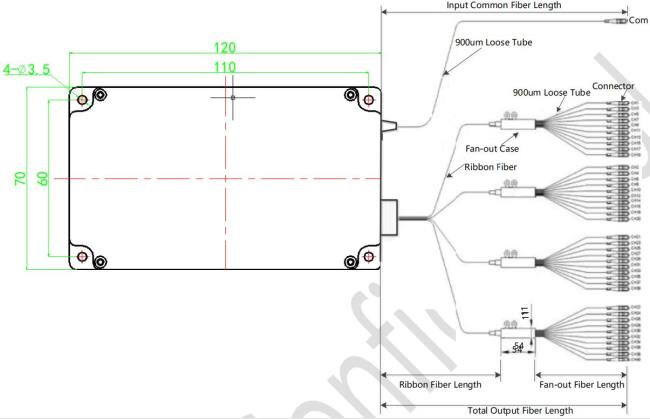

20	Package Size	mm	120x70x10
21	Fiber Type		SMF28e
22	Input Common Fiber Length	mm	1000±50	900μm Loose Tube
23	Ribbon Fiber Length	mm	500±50
24	Fan-out Fiber Length	mm	500±50	900μm Loose Tube
25	Connector Type		LC/UPC
Note: all the data above include connectors
