8 Core OM4 MPO Fanout Cable Multimode PC Polish Type For Jumper Connection
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

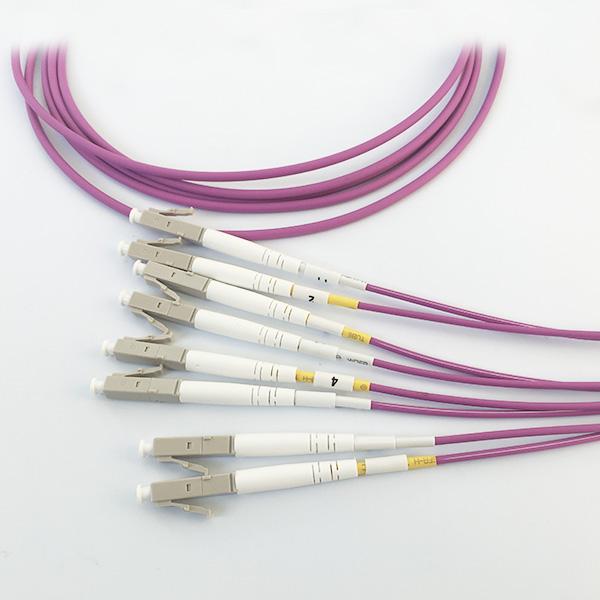

8 core Nissin MPO - LC duplex MPO fanout patch cord OM4 LSZH multimode cable

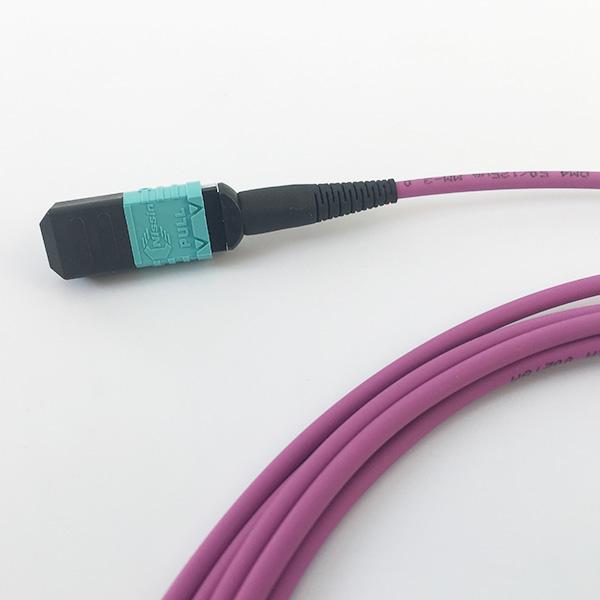

The multifiber MPO-LC fanout patch cable is terminated with 8 core original Nissin brand male MPO connector and standard duplex LC connectors, which is widely used in the data center cabling and telecommunication.
Features
◆ Polarity options are TypeA, B, or C
◆ 100% 3D interferometer passed with traceable data
◆ Multimode MPO interface polished type is PC for default
◆ Fully compliant with IEC Standard, YD/T Standard
◆ OEM/ODM available
Application
◆ Jumper Connection
◆ Data Center Cabling
◆ MPO cassettes, racks
◆ Fiber optic telecommunication
◆ 40G, 100G and QSFP transceiver
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Item | Parameters | ||||
| MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) | |||
| Standard | Low Loss | Standard | Low Loss | ||
| Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
| Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB | |
| Return Loss | >=60dB for APC | -- | |||
| >=40dB for PC | >=20dB for PC | ||||
| Male/Female | Male: with Pin; Female: without Pin | ||||
| LC/FC/SC Connector | ||||
| Item | SM | MM | ||
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) | |
| PC | <=0.2 | >=50 | <=0.3 | >=25 |
| APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
| MT | ||||
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000mm |
∞ |
|
| Short Axel | 50mm |
∞ |
||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||
| FC/LC/SC UPC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| FC ROC | 10.00mm | 25.00mm |
| LC ROC | 7.00mm | 25.00mm |
| Fiber Height | -100.00nm | 50.00nm |
| Apex Offset | 0.00μm | 50.00μm |
| FC/SC/LC APC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
