E2000 - SC Fiber Optic Patch Cord Single Mode Simplex G657A1 2.0mm APC / UPC Polish
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

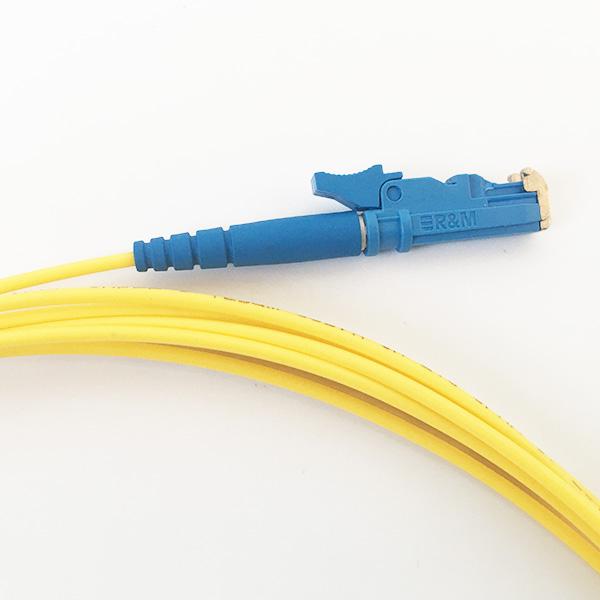

Patch cord fiber optic E2000 - SC single mode simplex G657A1 2.0mm LSZH cable
The E2000 connector is a kind of special designed fiber optical connector, which has a push-pull locking mechanism, with an automatic metal shutter in the connector as dust and laser beam protection. This one-piece design is easy and quick for termination. The connector is usually used for high safety and high power applications.
Features
◆ Small size, high density
◆ Available optical fiber cable diameters: 0.9mm, 2.0mm, 3.0mm
◆ Singlemode, multimode, simplex, duplex E2000 connectors and the corresponding adapters are available
◆ Fiber optical cable with CPR grade B certificate
Application
◆ Telecom network
◆ LAN, MAN network
◆ CATV, sensor systems, measuring technique
◆ Utilise, railway
◆ Fiber optic terminal box, cabinet
◆ Data center patch panel, rack
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 85 | °C |
| 2 | Storage Temperature | -40 | 85 | °C |
2. Optical Performance
| Item | SM | MM | ||
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) | |
| PC | <=0.20 | >=50 | <=0.30 | >=25 |
| APC | <=0.30 | >=60 | N/A | N/A |
3. Geometry Parameters
| UPC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 7.0mm | 25.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |
Standard Package
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
