B Type Polarity MPO Patch Cable Multi Mode LSZH Material 3m Length Aqua Color
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

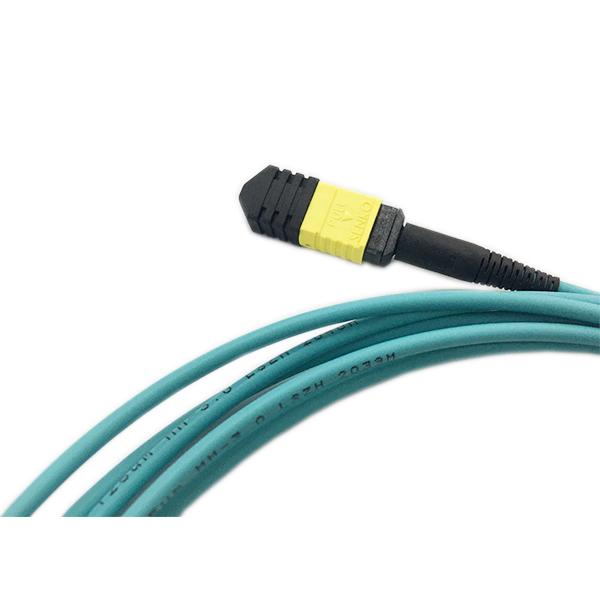

24F OM3 10G - 300 CORNING FIBER MPO PATCH CORD LSZH MATERIAL 3M LENGTH AQUA
Sometimes there is a misunderstanding that more optical fibers means more insertion loss. This misunderstanding lying on MPO patch cord is that the insertion loss of the 24F MPO patch cord is larger than that of the 12F MPO patch cord. Actually the insertion loss of both fiber counts connector is almost no difference if the ferrule is polished properly.
24F MPO connector ferrule has 2X12F fiber array. 1X12F is used for the transmission of optic and another 12F is used for the receiving. The middle 10F of each array are filled with optical fibers and the rest 2F are blank. This kind of fiber arrangement is determined by the 100G transceiver.
Features
◆ Original SENKO connector
◆ Compliance with IEC61754-7 and TIA 604-5-MPO
◆ 100% 3D geometry test with professional interferometer
◆ High reliability, adaptability and flexibility
◆ Round shape mini fiber optical cable, which has a small bend radius and is convenient for installation
Application
◆ FTTB high density cabling system
◆ LANs and WANs
◆ Complete connect 40G(QSFP+) optical transceiver
◆ Datacom and Telecom
◆ Fiber optical communication system
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Optical Performance | |||||
| Item | Parameters | ||||
| MTP/MPO Connector | SM (1310nm/1550nm) | MM (850nm) | |||
| Standard | Low Loss | Standard | Low Loss | ||
| Insertion Loss | Typical | 0.50dB | 0.20dB | 0.50dB | 0.20dB |
| Maximum | 0.70dB | 0.35dB | 0.70dB | 0.35dB | |
| Return Loss | ≥60dB for APC | ≥20dB for PC | |||
| ≥40dB for PC | -- | ||||
| Male/Female | Male: with Pins, Female: without Pins | ||||
3. Geometry Parameters
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000nm |
∞ |
|
| Short Axel | 50mm |
∞ |
||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||
Standard Package
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: What's the difference between MTP and MPO connector?
A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.
2. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
3. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
