Multimode Fiber Optic Breakout Cable MPO / PC To LC / UPC Harness 0.9mm Hytrel For LGX Cassette
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description
24F multimode MPO / PC to LC / UPC harness 0.9mm hytrel for LGX cassette

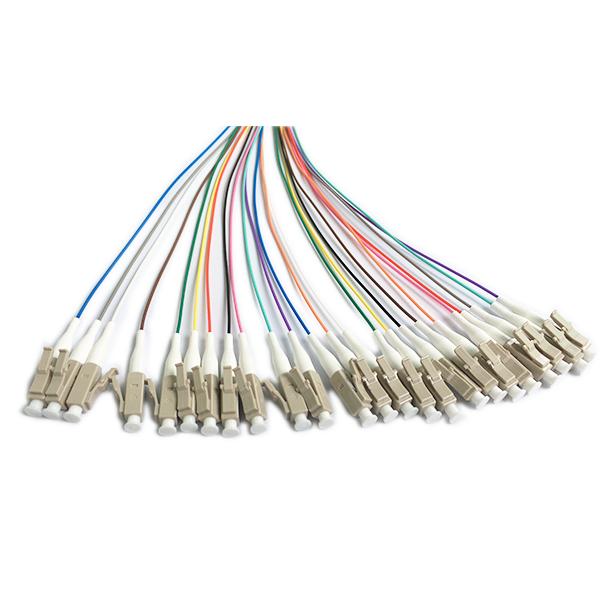

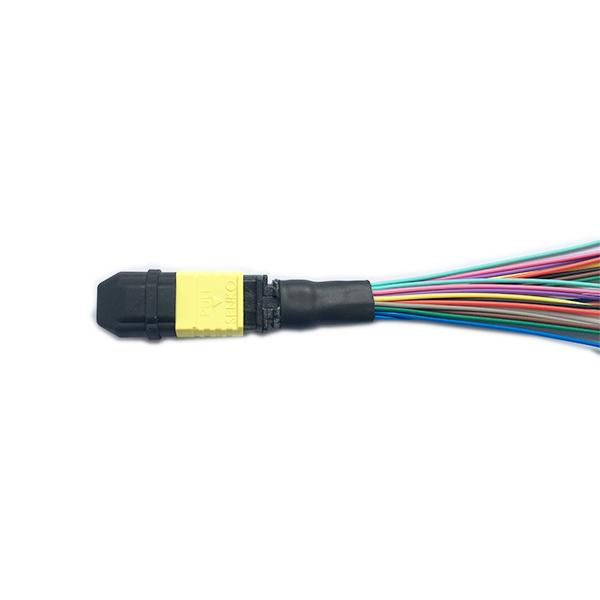

ORC 24 cores MPO-LC breakout patch cord has a single 24F MPO low loss multimode connector at one side, and fans out 24 pieces LC connectors at the other side. Between these two parts, there are the 900μm hytrel fiber optical cables. A breakout patch cord like this is usually matched with the MPO cassettes, connecting the backbone cable with the equipment. The modularized and play-play features improve the working efficiency dramatically and bring much convenience.
Features
◆ High flexibility with reducing installation time and cost
◆ The fanout cable length can be customized according to clients' requirement
◆ High fiber density
◆ Low insertion loss
◆ Multiple choice on connector types: FC,LC, SC, ST, MU, MPO, MTP® with different colors, size
Application
◆ High-density telecommunication and Data processing networks
◆ Premise installations
◆ Cassettes And Rack mount
◆ FTTH/FTTB, CATV, WAN, LAN
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Item | Parameters | ||||
| MPO/MTP® Connector | SM(1310nm/1550nm) | MM(850nm) | |||
| Standard | Low Loss | Standard | Low Loss | ||
| Insertion Loss | Typical | 0.5dB | 0.2dB | 0.5dB | 0.2dB |
| Maximum | 0.7dB | 0.35dB | 0.7dB | 0.35dB | |
| Return Loss | >=60dB for APC | -- | |||
| >=40dB for PC | >=20dB for PC | ||||
| Male/Female | Male: with Pin; Female: without Pin | ||||
| LC/FC/SC Connector | ||||
| Item | SM | MM | ||
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) | |
| PC | <=0.2 | >=50 | <=0.3 | >=25 |
| APC | <=0.3 | >=60 | N/A | N/A |
3. Geometry Parameters
| MT | ||||
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000mm |
∞ |
|
| Short Axel | 50mm |
∞ |
||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||
| FC/LC/SC UPC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| FC ROC | 10.00mm | 25.00mm |
| LC ROC | 7.00mm | 25.00mm |
| Fiber Height | -100.00nm | 50.00nm |
| Apex Offset | 0.00μm | 50.00μm |
| FC/SC/LC APC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
