LC-SC fiber optic patch leads 2.0mm Zipcord For Connection Between Transceivers
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

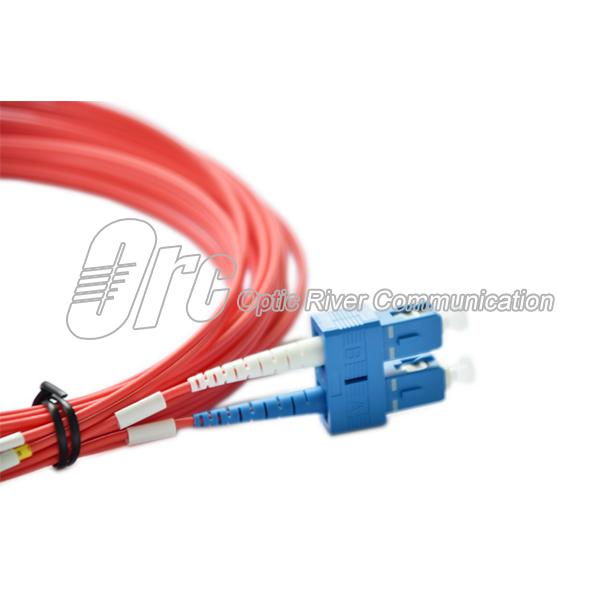

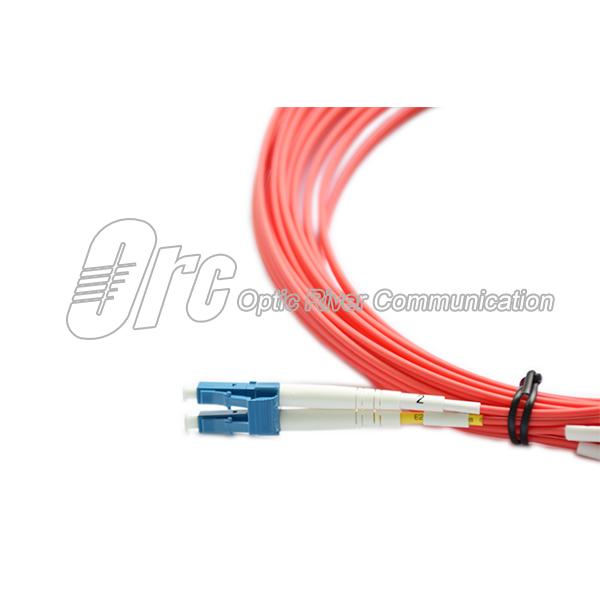

2.0MM ZIPCORD DUPLEX PATCH CORD RED SM LC - SC FOR THE CONNECTION BETWEEN TRANSCEIVERS
ORC supplies a wide range of fiber optic patch cords, manufacturing and developing high quality optic connection products for the demanding of network applications. Both ends are terminated with high performance hybrid or single type connector, which includes SC, LC, ST, FC, E2000(LSH), MU, MTRJ and so on.
Features
◆ High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU
◆ Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request
◆ Low insertion loss, high return loss, high dense connection and easy for operation
◆ 100% tested on optical performance with testing result label stuck on package bag
Standard compliance
◆ ISO/IEC 11801 2nd Ed., CENELEC EN 50173
◆ Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies
◆ Cable flame resistant rate: OFNR or IEC60332-3 standard
Specification
1. Optical Performance
| Item | SM | MM | ||
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) | |
| PC | <=0.20 | >=50 | <=0.30 | >=25 |
| APC | <=0.30 | >=60 | N/A | N/A |
2. Material data
| Range of mode | Single mode |
| Cable type | Duplex zipcord |
| Connector style | SC, LC |
| Ferrule interface type | PC, UPC, APC |
| Cable diameter | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm |
| Length | Customize |
| Strength member | Aramid yarn |
| Outer jacket | OFNR(PVC, LSZH, OFNP optional) |
| Cable Assembly Length (<20 meter Tolerance) | ±0.1M |
| Cable Assembly Length (>20 meter Tolerance) | ±1% |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3) | Aqua |
| Jacket Color (Multimode: OM4) | Aqua or violet |
| Jacket Color (Single Mode: G652D & Gb57A) | Yellow |
| Operation temp. | -20-+60℃ |
| Storage temp. | -20-+60℃ |
Ordering information
| AA | BB | C | D | E | F | G |
| Connector type | Connector type | Fiber type | Fiber count | Boot fit for cable diameter | Length | Jacket material |
|
SCA/SCU LCA/LCU FCA/FCU STA/STU E2000A/E2000U |
SCA/SCU LCA/LCU FCA/FCU STA/STU E2000A/E2000U |
G652D G657A1/G657A2 OM1 OM2 OM3 OM4 |
SX=1 core DX=2 cores |
0.9mm 1.6mm 1.8mm 2.0mm 3.0mm |
0010=1M 0100=10M |
PVC LSZH OFNR OFNP |
