Senko Cs Connector Fiber Optic Patch Cord Push Pull Tab For 200g Qsfp Transceiver
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description
SENKO CS CONNECTOR 2.0MM DUPLEX PATCH CORD WITH PUSH-PULL TAB FOR 200G QSFP TRANSCEIVER

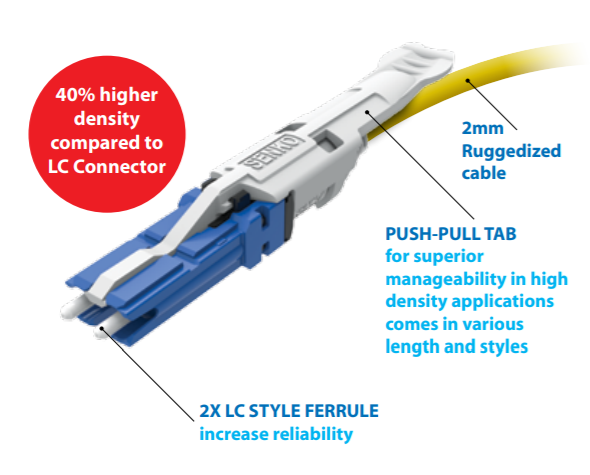

A brief introduction of SENKO CS® connector
The CS® connector has two cylindrical, spring-loaded butting 1.25mm ferrules, within a single housing. The two ferrules are pitched at 3.8mm apart, which is the minimum possible spacing to meet the TOSA and ROSA optics requirement.
The CS® connector has an advantage in height over LC connector. The LC's latching lever design requires adequate vertical spacing between adapters to get physical access to the release lever.
The CS® connector push-pull tab design allows the adaptes to be more densely stacked vertically.
Product parameter
| Connector type | CS®-LCD | Polish type | UPC(or APC) |
| Fiber number | Duplex | Fiber mode | SM(or OM3/OM4/OM5) |
| Wavelength | 1310nm/1550nm | CS® connector width | 7.85mm |
| Insertion loss | <=0.3dB | Return loss | >=50dB |
| CS® push-pull tab length | 48/55/62/69mm optional | Cable diameter | 2.0mm |
| Polarity | A(Tx)-B(Rx) | Operating temperature | -20-+60℃ |
Standard performance qualifications
◆ IEC 6130-3-34
◆ GR326
◆ TIA 568
Features and advantages
◆ Proven 1.25mm ferrule technology
◆ Designed for OSFP/QSFP-DD break out application
◆ 39% size reduction compared to LC Duplex
◆ Push-pull tab
◆ IEC random mating Grade B
◆ Connector approved by QSFP-DD, OSFP and COBO
◆ Performance exceeds LC
◆ Push and pull tab for a better usability in high density applications
◆ Double the density compared to LC
