40G 100G OM4 MPO TO MPO Optical Jumper Patch Cord 12 Core
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

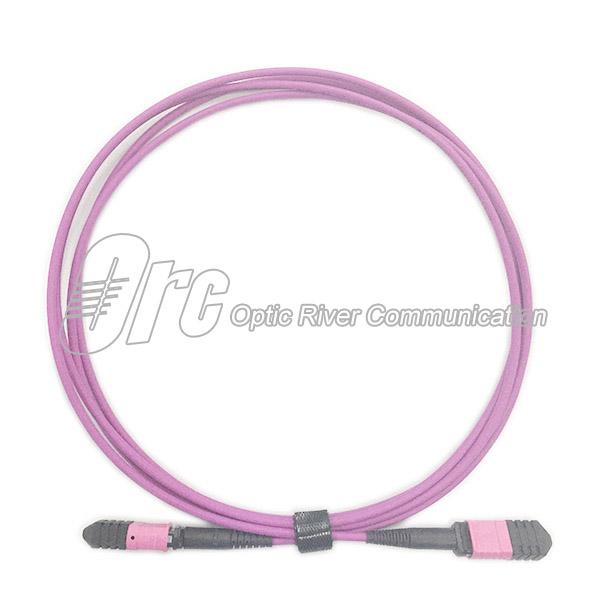

40G 100G 12 CORES OM4 MPO TO MPO MULTI-MODE FIBER OPTIC JUMPER PATCH CORD
ORC's factory pre-connectorized Multimode 50/125 OM4 MPO trunk cable offers the users the much faster installation, the advantage of consistent quality and simpler cable management. Manufactured with 12-strand SENKO MPO female connectors and 12 cores laser-optimized multimode OM4 fiber optic cables, the MPO fiber optic trunk cable is suitable for application in MPO fiber optic cassette connection and 10G/40G/100G high density data center cabling.
Features
◆ Fiber count: 12 fiber trunk cable
◆ Laser-optimized multimode OM4 fiber
◆ Optimized performance – available in elite MTP and discrete premium connector upon request
◆ Factory terminated and tested
◆ Suitable for MPO cassette application
Application
◆ High density fiber card edge access
◆ Array trunk cables
◆ 40G and 100G optics system, QSFP module
◆ Optical switching interframe connections
◆ Data center cabling installation
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Geometry Parameters
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000nm |
∞ |
|
| Short Axel | 50mm |
∞ |
||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||
3. Optical Performance
| Optical Performance | |||||
| Item | Parameters | ||||
| MTP/MPO Connector | SM (1310nm/1550nm) | MM (850nm) | |||
| Standard | Low Loss | Standard | Low Loss | ||
| Insertion Loss | Typical | 0.50dB | 0.20dB | 0.50dB | 0.20dB |
| Maximum | 0.70dB | 0.35dB | 0.70dB | 0.35dB | |
| Return Loss | ≥60dB for APC | ≥20dB for PC | |||
| ≥40dB for PC | -- | ||||
| Male/Female | Male: with Pins, Female: without Pins | ||||
Standard Package
Product Advantages
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
Choose Your Polarity
ORC QC Process Flow Chat
