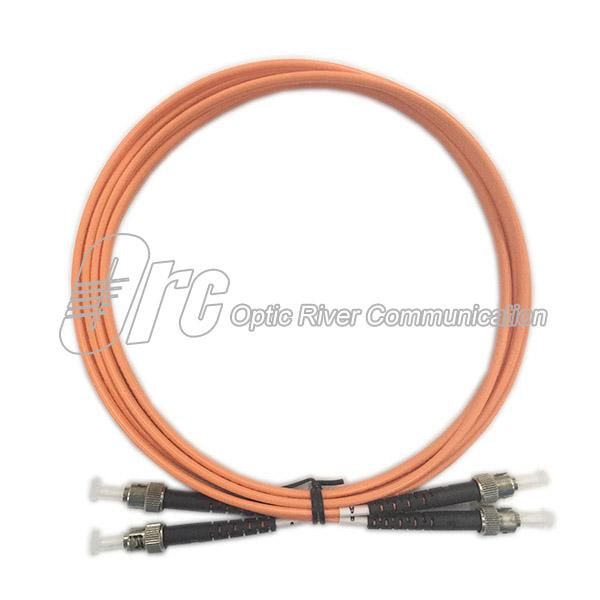

ST/PC To ST/PC Duplex Multi Mode Patch Cord OM2 3.0mm G652D
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description
ST/PC to ST/PC Multi Mode Duplex Networing Patch Cord Orange OM2 3.0mm Zipcord
Description
OM2 ST-ST fiber patch cable is ready for deployment in any 50/125 network. 50/125 networks support longer cable distances with lower loss than a 62.5/125 networks. This multimode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. It has an orange plenum zipcord jacket.
Product information
| Connector type | ST-ST | Polish type | UPC |
| Fiber number | 2 | Fiber mode | OM2 |
| Wavelength | 850nm | Connector material | Metal housing and plastic boot |
| Insertion loss | <=0.3dB | Max transmission distance | 600M |
| Fiber grade | Bend insensitive | Data rate | 1GB @ 850nm |
| Cable jacket | OFNP | Cable diameter | 3.0mm zipcord |
| Polarity | A(Tx)-B(Rx) | Operating temperature | -20-+60℃ |
Features
◆ High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU
◆ Ceramic ferrules provide precise alignment
◆ Ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications
◆ Connectors utilize a UPC polish
◆ Endface inspection, IL/RL testing and 3D interferometer testing
Applications
◆ Used to connect patch panels and/or network devices that utilize duplex ST-ST style connectors and require OM2 50/125 multimode cabling
◆ Optical communication system
◆ Optical fiber CATV
◆ FTTX+LAN
◆ Telecommunication
Drawing and cable length tolerance
| Length Tolerance | |
| L<1M | ±0.08M |
| 1M≤L<20M | ±0.10M |
| L≥20M | ±1%M |
Standard package
