Metal 12F 8F MPO MTP To LC Cassette For Data Center Enclosure
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Negotiable
Brand:
OEM
Product Description
Metal 12F 8F MPO MTP To LC Cassette For Data Center Enclosure
MPO/MTP To LC Metal Cassette / Module 12F 8F For Data Center Enclosure
MPO to LC cassettes module is designed to provide within a snap-in/snap-out panel and accommodate industry-standard LC connector adapter types, which is perfect to run between 2 racks or closets. Proprietary cables routed into the module are easier to route and store within a housing.
Features
◆ Pre-terminated & Tested
◆ 100% pre-terminated tested
◆ Plug-and-play pre-terminated cassette comes with one 12
fiber MPO connector on the back and 6 duplex LC connectors
on the front
fiber MPO connector on the back and 6 duplex LC connectors
on the front
◆ 1U,2U,3U,4U or customized
◆ SM,OM1,OM2,OM3,OM4 or customized
◆ Compliance with Telcordia GR-326-CORE compliant
◆ Custom-made with SC or ST connectors instead of LC
◆ RoHS compliant
Application
◆ Optical Equipment Connectivity
◆ Data Center
◆ Patch Panel
◆ Telecommunication Network
◆ Industrial&Military
Geometry Parameters
| MT | ||||
| Measurement | Pass/Fail Limits | |||
| Parameters | Min | Max | ||
| Radius of Curvature | Long Axel | 2000mm | ∞ | |
| Short Axel | 50mm | ∞ | ||
| Angle | Long Axel | -0.2° | 0.2° | |
| Short Axel | APC | 7.8° | 8.2° | |
| PC | -0.2° | 0.2° | ||
| Fiber Height | 1000nm | 3000nm | ||
| Different Fiber Height | N/A | 500nm | ||
| Adjacent Fiber Height | N/A | 300nm | ||
| Ferrule Length | 7.9mm | N/A | ||

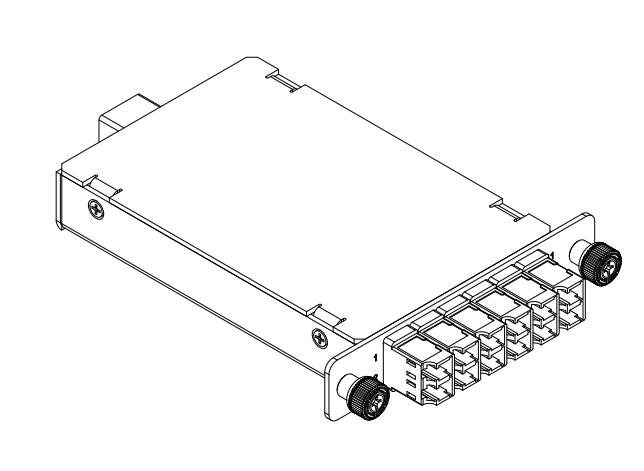

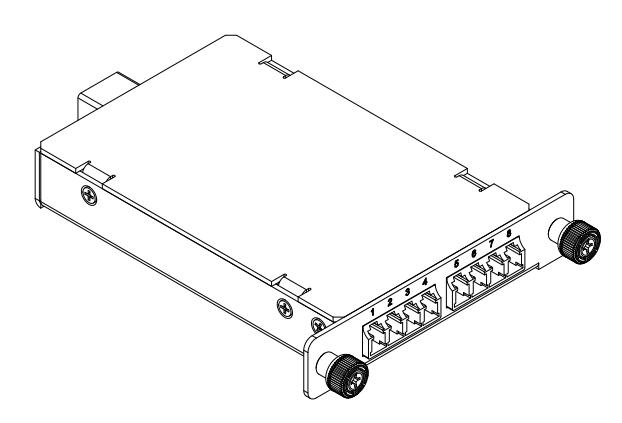

Drawing of 12F and 8F MPO-LC Cassette
