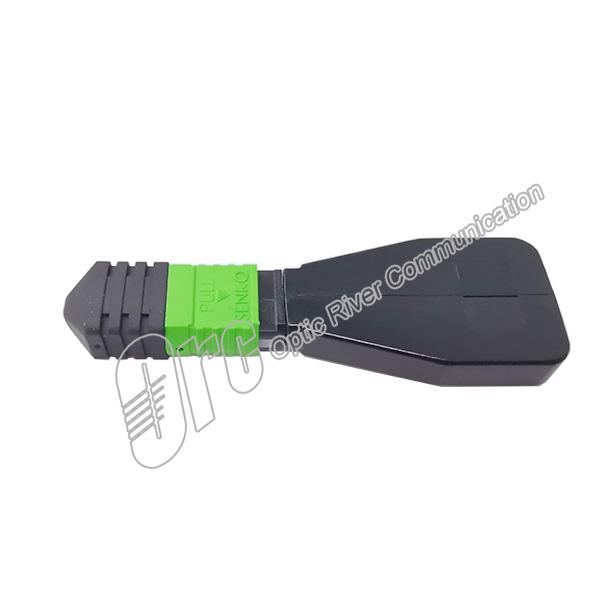

MPO Loopback Single mode 12 Cores G652D with Green House
MPO loopback is used to test network system in the signal comes back, through the echo signal, can detect the network link in the various potential abnormalities, the test is widely used, in order to ensure the normal network link provides an effective way of testing.
Features
◆ Male and female structures
◆ Options: Elite; Standard
◆ End face PC or APC optional
◆ Ferrule type: 8F, 12F, 16F, 24F, 32F
◆ Optical fiber type: SM (G652D/G657A2) or MM (OM4 BI, OM3BI), specific fiber optional
Application
◆ Optical network equipment self-test
◆ Optical fiber integrated wiring
◆ System loop testing
◆ 100Gb optical testing
◆ Optical fiber loop testing
◆ Network diagnosis and testing
◆ Storage LAN application
Specification
1. Operating & Storage Temperature
|
|
Parameters |
Min |
Max |
Unit |
|
1 |
Operating Temperature |
-40 |
70 |
°C |
|
2 |
Storage Temperature |
-40 |
70 |
°C |
2. Optical Performance
|
Optical Performance |
|||||
|
Item |
Parameters |
||||
|
MTP/MPO Connector |
SM (1310nm/1550nm) |
MM (850nm) |
|||
|
Standard |
Low Loss |
Standard |
Low Loss |
||
|
Insertion Loss |
Typical |
0.50dB |
0.20dB |
0.50dB |
0.20dB |
|
Maximum |
0.70dB |
0.35dB |
0.70dB |
0.35dB |
|
|
Return Loss |
≥60dB for APC |
≥20dB for PC |
|||
|
≥40dB for PC |
-- |
||||
|
Male/Female |
Male: with Pins, Female: without Pins |
||||
3. Geometry Parameters
|
Measurement |
Pass/Fail Limits |
|||
|
Parameters |
Min |
Max |
||
|
Radius of Curvature |
Long Axel |
2000nm |
∞ |
|
|
Short Axel |
50mm |
∞ |
||
|
Angle |
Long Axel |
-0.2° |
0.2° |
|
|
Short Axel |
APC |
7.8° |
8.2° |
|
|
PC |
-0.2° |
0.2° |
||
|
Fiber Height |
1000nm |
3000nm |
||
|
Different Fiber Height |
N/A |
500nm |
||
|
Adjacent Fiber Height |
N/A |
300nm |
||
|
Ferrule Length |
7.9mm |
N/A |
||
4. Details Picture
Product Advantages
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
ORC QC Process Flow Chat
FAQ
1. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
2. Q: What's the difference between MTP and MPO connector?
A: First of all, MTP connector is fully compliant with all of the MPO connector. MTP, developed and manufactured by the American connectivity specialist US Conec, is a kind of high performance MPO connector with multiple innovative design. So its cost is higher than MPO connector. But there are still some cost-effective choices, such as Senko, Nissin, EZconn, FIEL brand MPO connectors.
3. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
