Active 3.0mm Fiber Optic Patch Cord With LC To LC Fiber Jumper
Active 3.0mm Fiber Optic Patch Cord With LC To LC Fiber Jumper

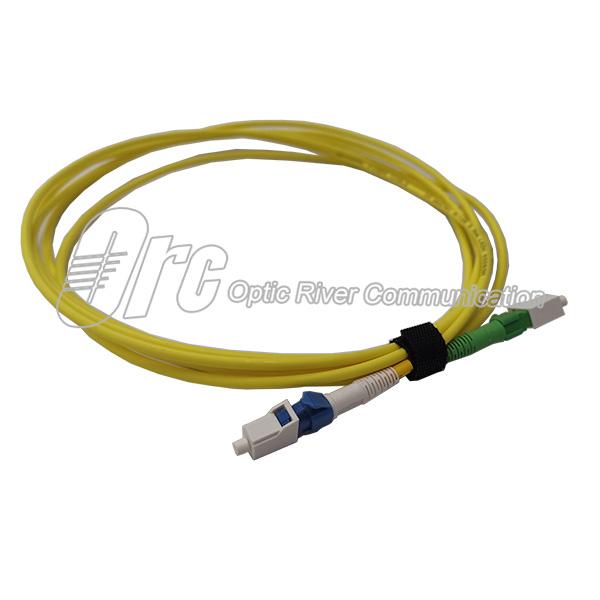

Riser and Plenum Rated Jacket Yellow 3.0mm LC-LC Fiber Optical Jumper
Definition of Patch cord
ORC offers singlemode and multimode, simplex and duplex Indoor Fiber Jumper Cables manufactured to tight internal specifications that exceed industry-accepted standards. Fiber jumper assemblies are used in a variety of carrier networks and private network environments. The key to manufacturing high-performance fiber jumper assemblies is controlling polish radius, apex offset and fiber undercut. ORC monitors its automated polishing process to exceed industry specifications for insertion and return loss, ensuring a top-quality product.
Fiber optical patchcord parameters
|
Characteristics |
Unit |
Value/Performance |
|
Comments |
||||||
|
|
|
SM |
MM |
|
||||||
|
|
|
APC |
PC |
|
|
|||||
|
Basic |
||||||||||
|
Insertion Loss(IL) |
dB |
≤0.3 |
IEC61300-3-4 |
|||||||
|
Insertion Loss(RL) |
dB |
SPC≥45 UPC≥50 |
≥60 |
≥23 |
IEC61300-3-6 |
|||||
|
Endurance |
dB |
△IL≤0.2 |
IEC61300-2-2 |
|||||||
|
Operation Temperature |
℃ |
-20 to +70 |
|
|||||||
|
Speration Temperature |
℃ |
-40 to +70 |
|
|||||||
|
Ferrule end-face geometry |
||||||||||
|
Radius of curvature(R) |
mm |
7-25 |
5-12 |
NA |
Telcordia GR326(4.4.5) |
|||||
|
Apex offset |
um |
≤50 |
NA |
Telcordia GR326(4.4.5) |
||||||
|
Fiber protrusion |
nm |
≤50 |
≤100 |
NA |
Telcordia GR326(4.4.5) |
|||||
|
Fiber under cut |
nm |
≤125@R=7-10 |
≤100 |
NA |
Telcordia GR326(4.4.5). For PC, under cut≤-0.02R³+1.3R²-31R+325 when R=10-25mm |
|||||
|
Mechanical |
|
|
|
|
|
|||||
|
Drop |
dB |
△IL≤0.2 |
IEC61300-2-12, 1.5m, 5 drops, no damage |
|||||||
|
Vibration |
dB |
△IL≤0.2 |
IEC61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5hrs/axis |
|||||||
|
Flex |
dB |
△IL≤0.2 |
Telcordia GR326(4.4.3.2), 0.6kg, ±90°, 100cycles, for 2mm or larger cable |
|||||||
|
Twist |
dB |
△IL≤0.2 |
Telcordia GR326(4.4.3.3), 1.35kg load, ±2.5 turns, 10cycles, for 2mm or larger cable |
|||||||
|
Pull proof |
dB |
△IL≤0.2 |
Telcordia GR326(4.4.3.4), 2.3kg at 90°, 6.8kg at 0°, for 2mm or larger cable |
|||||||
|
Coupling strength |
dB |
△IL≤0.2 |
IEC61300-2-6, 4.2kg, 2min |
|||||||
|
Static bending |
dB |
△IL≤0.2 |
IEC794-1-2, 60mm diameter 10 turns |
|||||||
|
Crushing |
dB |
△IL≤0.2 |
IEC794-1-2, 102kg for 2mm or larger cable, 10.2kg for 900um cable |
|||||||
|
Environmental |
|
|
|
|||||||
|
Cold |
dB |
△IL≤0.2 |
IEC61300-2-17, -20℃, 96 hrs |
|||||||
|
Dry heat |
dB |
△IL≤0.2 |
IEC61300-2-18, 70℃, 96 hrs |
|||||||
|
Damp heat |
dB |
△IL≤0.2 |
IEC61300-2-19, 40℃, 95% RH, 96 hrs |
|||||||
|
Transmission |
|
|
|
|||||||
|
Characteristics |
Unit |
G652 SM |
G655 SM |
Std. 50um |
62.5um |
OM2 |
OM3 |
|||
|
Max. Attenuation |
dB/km(nm) |
0.4/0.3(1310/1550) |
0.3(1550) |
2.8(850) |
3.0(850) |
2.8(850) |
2.8(850) |
|||
|
Min. Bandwidth |
MHz km(nm) |
- |
- |
500/500(850/1300) |
200/200(850/1300) |
750(850) |
2000(850) |
|||
|
Dispersion coefficient |
ps/nm² km |
≤3.0(1310nm) |
2.6-6.0(1550nm) |
- |
- |
- |
- |
|||
Features of SM Simplex 3.0mm LC-LC Fiber Optical Patch Cord
● End-Face Type: PC/UPC/APC
● Fiber Diameter: 0.9mm, 2.0mm or 3.0mm
● Available for simplex and duplex
● The outer jacket can be PVC, LSZH, Armored etc
● Available for different connectors: SC, LC, FC, ST, MPO, MTP, MU, DIN, D4, E2K etc
● Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available
● Low insertion loss and high return loss, high dense connection, easy for operation
● Customer lengths and connectors are available upon request
Applications of Fiber Optical Jumper
● CATV
● Computer networks
● Telecommunication networks
● ODF of optical transmission system
● High speed data transmission network
● High quality graphic transmission network
● Connection of optical transmission equipment
Drawing and cable length tolerance
|
Length Tolerance |
|
|
L<1M |
±0.08M |
|
1M≤L<20M |
±0.10M |
|
L≥20M |
±1%M |
