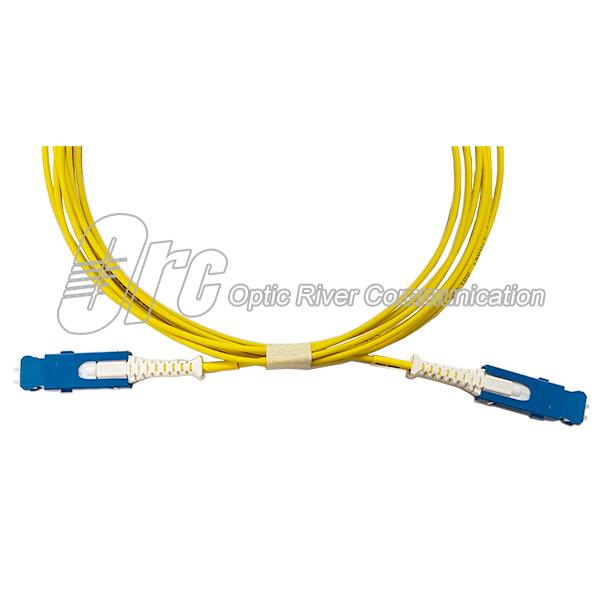

1.6mm Diameter LSZH Fiber Optic Patch Cord Assembly Single Mode
1.6mm Diameter LSZH Fiber Optic Patch Cord Assembly Single Mode
SN Fiber Optical Cable Assembly Fiber Patch Cord Single Mode 1.6mm Diameter LSZH

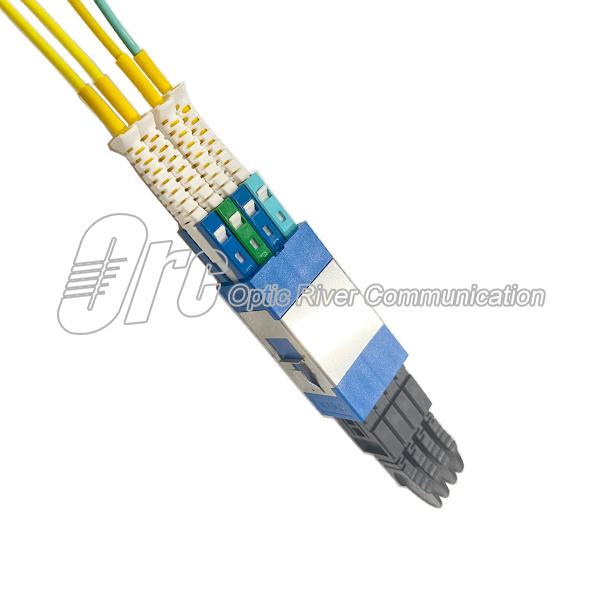

Features and benefits of SN - SN patchcord
|
4 x SN Connectors in QSFP Footprint 2 x SN Connectors in SFP Footprint |
Provides more-efficient, lower-cost alternative to MPO connectors with increased reliability; Provides increased connector density over CS connectors |
| Optimized for 4 x 100GbE | Supports next-generation 400G QSFP-DD and OSFP transceivers |
| 2 x LC Ferrules per Connector Housing | Delivers proven 1.25mm ferrule technology and LC level; performance in a dramatically reduced footprint |
| Push/Pull Boot Design |
Provides grab boot to mate and de-mate connector; Allows for high-density layout |
| SN Cable Assembly | Supports a 1.60mm jacketed cable |
Markets and applications of SN fiber cable assembly
| Data Center Solutions | Telecommunications/Networking |
|
400 and 800G system deployment
Cable distribution/management
Cloud computing
Servers
Switches/routers |
400 and 800G system deployment
Cable distribution/management
Cloud computing
Servers
Switches, routers
|
Drawing for SN fiber optical connector
