Replacement Exhaust Gas T- T- RH163 Marine Diesel Turbocharger Complete

T- T- RH163 marine turbocharger:

T- T- RH163 marine turbocharger belongs to  T- T- RH series turbocharger (T- T- RH133, 143, 163, 183 and 203), which  consists of mixed flow turbine and radial flow compressor.

• T- T- RH163 marine turbocharger is developed to match high-speed diesel engine.
• Inboard plain bearing is lubricated by the engine oil system.
• A seal ring and heat shield are mounted on the turbine side to avoid the gas to the bearings.
• A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking.
• A thrust bearing to prevent the shaft moving due to the thrust force.
• The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6.
• T- T- RH series turbochargers are broadly used in automotive, heavy truck, construction, marine and industrial engine.

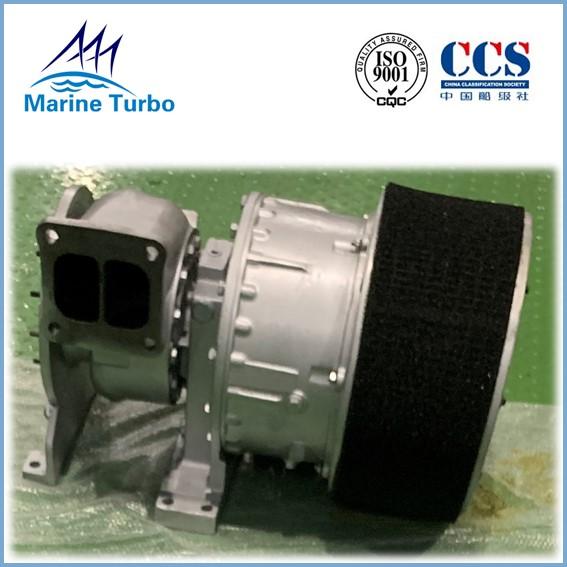

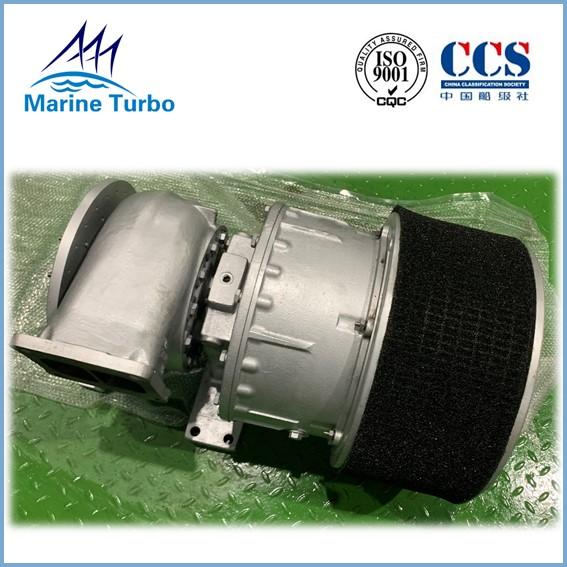

More picture of T- T- RH163 marine turbocharger:

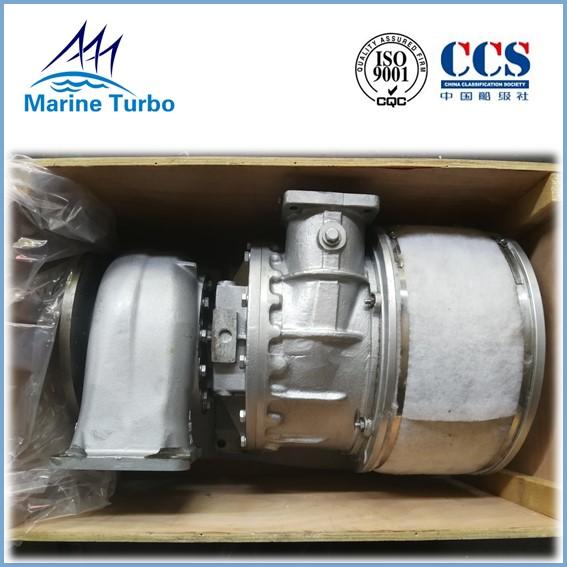

Packing picture:

T- T- RH163 turbocharger dimension and weight:

Q&A:

Q1. How y days is the delivery time?

A: We usually have the semi-product in stock, so it usually need 3 working days for the processing and assembly of the turbocharger.

Q2. What is the nearest port?

A: The nearest port is Shanghai port.

Q3. Do you have the Warranty?

A. Yes, we have. The warranty is 12 months for fixed parts and 6 months for rotary parts.
