Radial Type Mitsubishi Turbo Spare Parts MET26SR Turbocharger Rotor Complete

Mitsubishi  MET - SR series turbocharger features:

MET26SR rotor cartridge belongs to Mitsubishi MET-SR series exhaust gas turbocharger, which has the features as below:

• Compressor pressure ratios, up to 4.0;
• High turbocharging efficiency up to 70%;
• Radial type of turbine;
• Bearing on the inner side of the impeller;
• Rotor support is not affected by thermal expansion of the turbine casing;
• Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;
• The gas inlet casing is double wall structure, which make it easy to check the turbine and nozzle;
• The MET Series turbochargers is kind of advanced aerodynamic design;
• Long service lifetime and high reliability;
• Low noise silencer is applied to the T-MET Series turbochargers;
• Applied to all major engines in marine and stationary field.

MET Series turbocharger's types:

What is rotor complete?

The turbochargerRotor complete is also called turbocharger rotor assembly, consists of compressor impeller, blade shaf/turbine shaft/rotor shaft and partition wall complete.

The turbocharger rotor shaft is equipped with components such as a compressor and a turbine impeller, and has a complicated structure and a large weight. If the ship is parked for a long time, the turbocharger rotor will be bent and deformed due to the long-term non-operating self-weight, which will break the matching gap between the rotor and the casing, the gas seal and the casing, and the rotor will be lost. In severe cases, the rotor is difficult to rotate and the friction is severe. A large centrifugal force is generated during operation to cause the supercharger to vibrate.

Therefore, if the ship is suspended for a long time, attention should be paid to the agement of the supercharger to prevent deformation of the rotor.

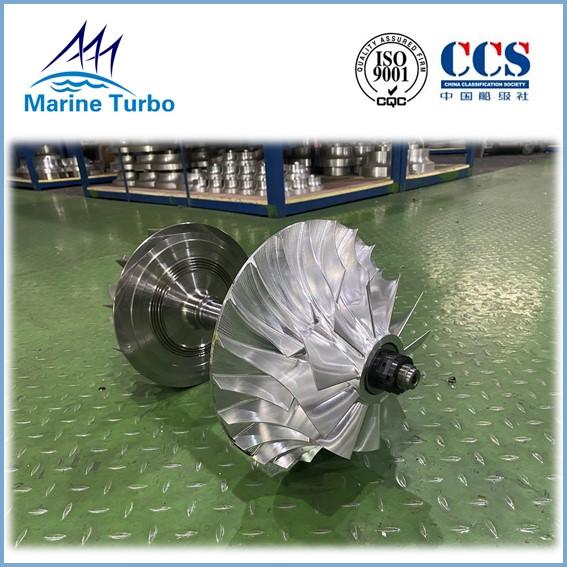

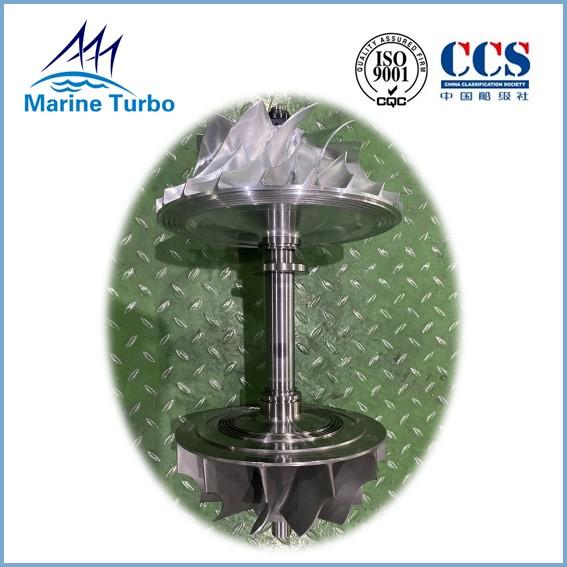

More pictures for MET26SR rotor complete:

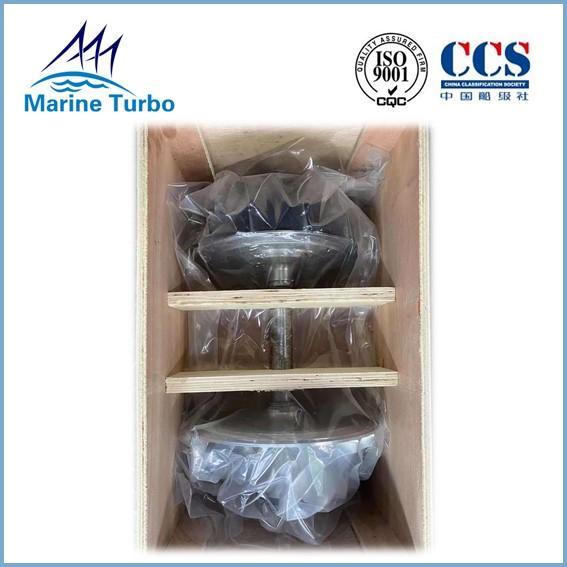

Packing method:

Brief profile for Marine Turbo Company:

Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for , , KBB, MET, and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or oveT- T- RHaul needs for various brands with a quick response and a reasonable price.

​Marine Turbo also can provide product customization services to meet the personalized needs of customers. According to the sample or drawings provided by customers, Marine Turbo can process and ufacture the corresponding products in order to provide customers with sound-quality products at low cost.
