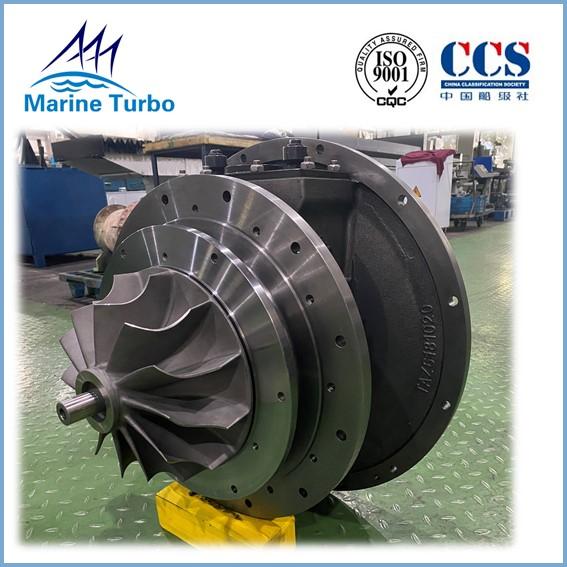

MET26SR turbo chra Cartridge Replacement For Diesel engine Mitsubishi Turbocharger

Mitsubishi  MET - SR series turbocharger features:

MET26SR turbo chra cartridge belongs to Mitsubishi MET-SR series exhaust gas turbocharger, which has the features as below:

• Since the 1965 until now, T- MET Series exhaust gas turbochargers has developed y series to meet the market deds, it includes the Axial type and Radial type of turbochargers:
•

• MET turbo	Axial Type			Radial Type
  	Original and ..0 Series	T-S, -SA Series	T-SB,SBII Series	T-SR, SRII Series
  	T-SC,SD Series	T-SE Series	T-SEII Series	T-SRC Series
  	T-MA Series	T-MB Series	T-MBII Series	T-ER Series

• The bearing is designed on the inner side of the impeller and turbine blade;
• The Rotor is supported by a pedestal with less thermal deformation;
• Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;
• The gas inlet casing is double wall structure, which make it easy to check the turbine and nozzle when doing the maintenance;
• An advanced aerodynamic design for compressor and turbine is adopted in T-MET Series turbochargers;
• Simple and compact design of T-MET Series turbocharger make it long service lifetime and high reliability;
• T-MET Series turbochargers is mounted low noise silencer to reduce the noise and make it environmentally friendly when the engine is running;
• T-MET series turbochargers are widely used marine and stationary engines.
• T-MET series turbochargers service the engine power output range from 400kW to 45,200kW per unit.

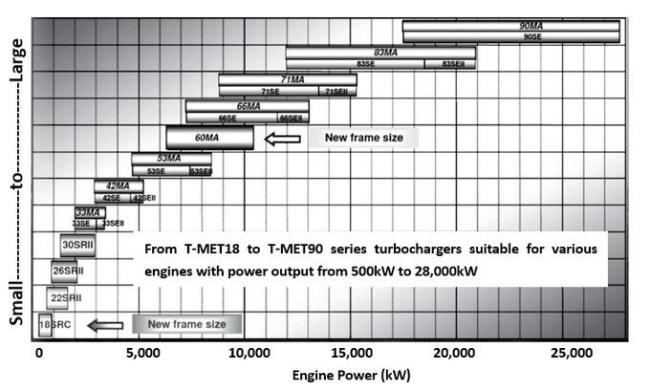

MET turbocharger Engine power output range:

MET - SR Series turbocharger's types:

Composition of turbocharger cartridge:

MET26SR turbo cartridge is composed by rotor complete and bearing complete. The rotor complete consists of compressor impeller, blade shaft, turbine shaft and partition wall complete. Bearings play an important role in turbochargers. They not only ensure safe and reliable high-speed rotation of the rotor, but also ensure that the rotor is fixed in the correct position.

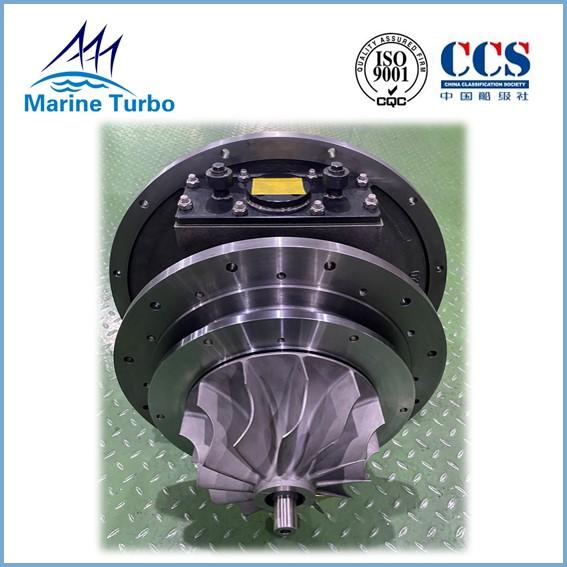

More pictures for MET26SR turbo cartridge:

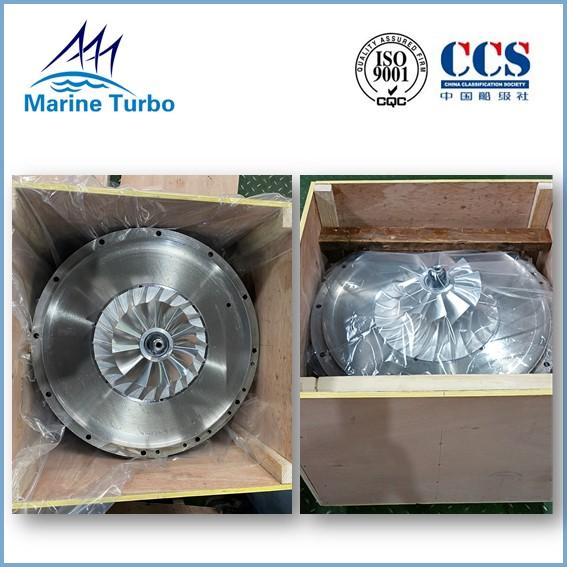

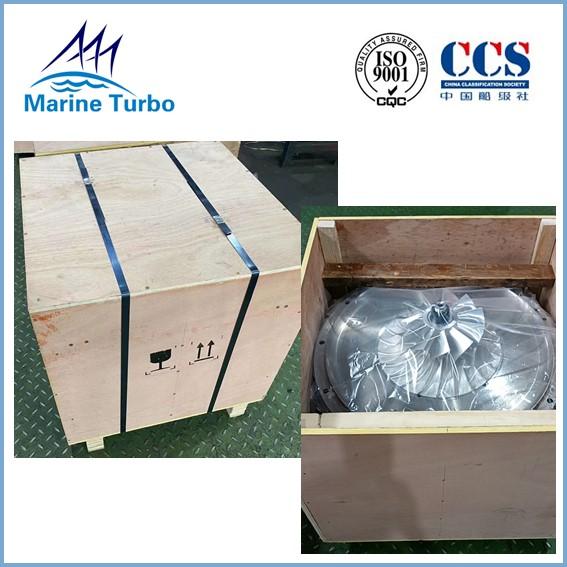

Packing method:

Brief profile for Marine Turbo Company:

Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for , , KBB, MET, and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or oveT- T- RHaul needs for various brands with a quick response and a reasonable price.
