/ RR151-14 Turbocharger Bearing Casing For High Speed Diesel And Gas Engines
/ RR151-14 Turbocharger Bearing Casing For High-Speed Diesel And Gas Engines
/RR series marine turbocharger's design features:
- High- output range from 500 kW to 1800 kW per turbocharger;
- Compressor pressure ratios: up to 3.5;
- High efficiency and small size;
- Lower fuel consumption
- The RR series turbocharger is equipped with pressure lubricated internal bearings, externally mounted "mixed flow" turbines and radial compressors;
- The RR series turbochargers are lubricated via the oil systme of the engine using standard oil filters;
Applications:
The RR series turbochargers are used on high-speed diesel engines and on gas engines.
/ RR series turbocharger dimension and weight only for reference:
| RR Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | Weight (kg)* | |
| RR151 | 232.5 | 432.5 | 371.5 | 362 | 121 | 139.5 | 210 | 140 | 161.5 | 103 |
Note: *without filter silencer/suction branch and without cooling water.

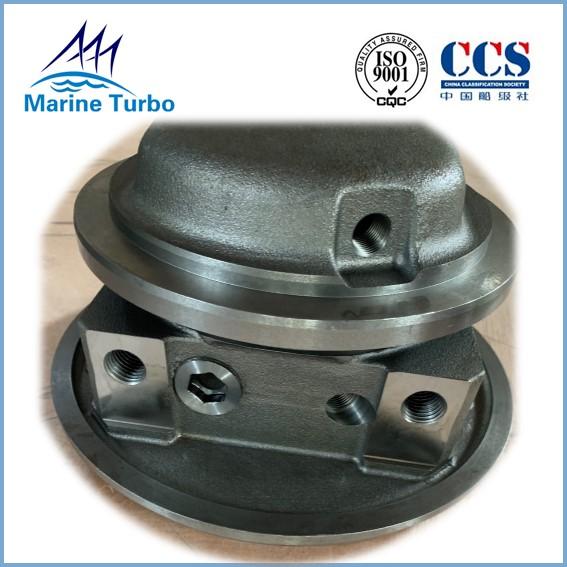

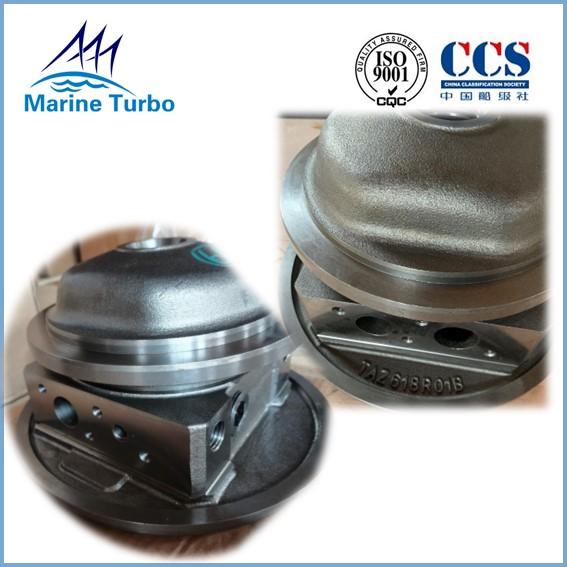

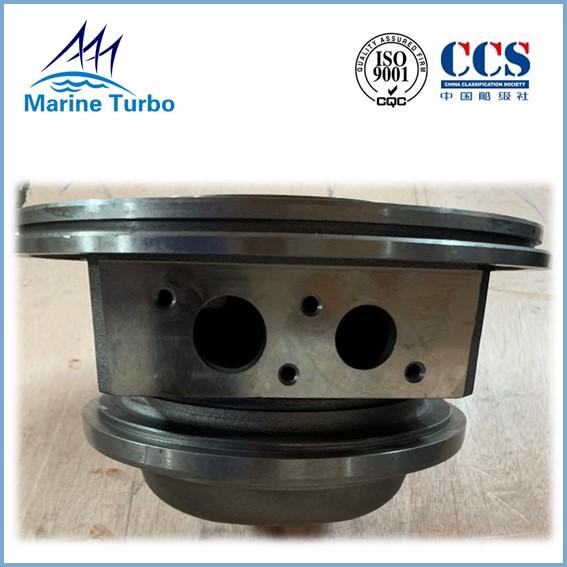

More photos for RR151-14 Turbocharger Bearing Casing:
Q&A:
Q1. what are your main products?
A: our main products are turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....
Q2. What is the Warranty?
A: 12 months for fixed parts and 6 months for rotary parts.
Q3. what is your terms of delivery?
A: EXW, FOB, CIF
Q4. what is your terms of payment?
A: 100% paid before delivery.
Q5. how about your delivery time?
A: most models are in stock. Generally, we can ship it as soon as receiving your payment. the specific delivery time depends on the items and the quantity of your order.
