Corrugated Paper Concora Medium Fluter for CMT CCT Testing
This BN-8627 Concora medium fluter is used for sample preparation for concora medium test (CMT) and corrugated crush test (CCT). It is specially used for making standard corrugating samples which used to determinate of flat crush strength of corrugated paper when pressed standard waveform. It's an indispensable instrument for judging the quality and performance of corrugated fibreboard and corrugated boxes in the packaging industry.
Main Features:
1.The high-precision temperature controller can adjust the temperature accurately, and the PID control mode with automatic temperature compensation mode is adopted.
2.Fast response and high steady-state accuracy.
3.Digital display of actual temperature and set temperature, with over temperature protection device, automatic memory of set parameters after power failure, with parameter self-tuning function.
4.The precision machined copper gear has large heat capacity, good heat transfer and wear resistance. The standard button is sensitive and durable, and the automatic corrugated base paper is corrugated.
Technical parameters:
| Radius of teeth at peak | 1.50 ± 0.10mm |
| Radius of teeth at base | 2.00 ± 0.10mm |
| Depth of teeth | 4.75 ± 0.05mm |
| Distance between teeth | 8.55 ± 0.05mm |
| Diameter of rolls | 228.5 ± 0.5mm |
| Dimensions of rolls | 16 ± 1mm |
| Standard working speed | 4.5r/min |
| Working temperature range | RT~200℃ |
| Temperature accuracy | ±1℃ |
| Standard working temperature | 175±8℃, also based on your requests |
| Working pressure range optional | 49~108N |
| Machine Dimensions | 530*400*475mm |
| Machine Weight | About 50kg |
| Power supply | 220V 50HZ or customized |

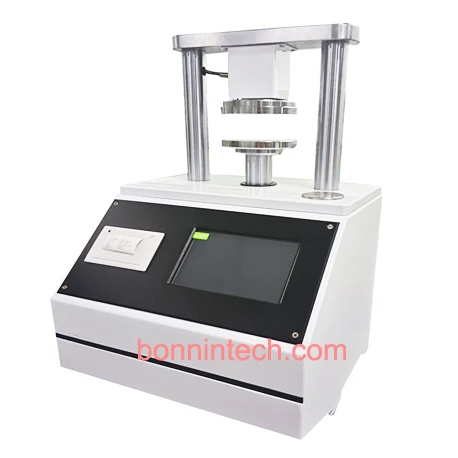

This Automatic Corrugated Cardboard Edge Ring Crush Strength Tester is used to detect the ring crush of paper, edge crush of cardboard, adhesive strength and plate crush of corrugated board. The paper mill is typically used to detect paper ring strength (RCT) with a thickness of 0.15 to 1.00 mm. Cardboard, carton box companies are often used to detect corrugated board edge strength (ECT), flattening strength (FCT), adhesive strength (PAT) and core pressure (CMT) of diameter less than 60mm. The instrument is an ideal auxiliary testing equipment for papermaking enterprise, cardboard production enterprises, carton production enterprises, carton use enterprises and quality supervision and inspection departments.
Features:
1. Using 32-bit high-precision AD converter (resolution of up to 1 / 10,000,000) and high-precision load cell to ensure that the instrument force data collection of the rapidity and accuracy.
2. The use of imported electrical components, high-speed data processing, the entire English menu, before the test can be pre-input sample parameters and test parameters, after the end of the test automatically calculate and output the maximum force, elongation, maximum tensile strength, Can save multiple sets of test data and results.
Technical parameters:
| Measuring range | 5 ~ 3000N |
| Accuracy | ≤ ± 1% |
| Resolution | 0.01N |
| Plates parallelism | ≤ 0.05mm |
| Test speed | 12.5 ± 1mm / min |

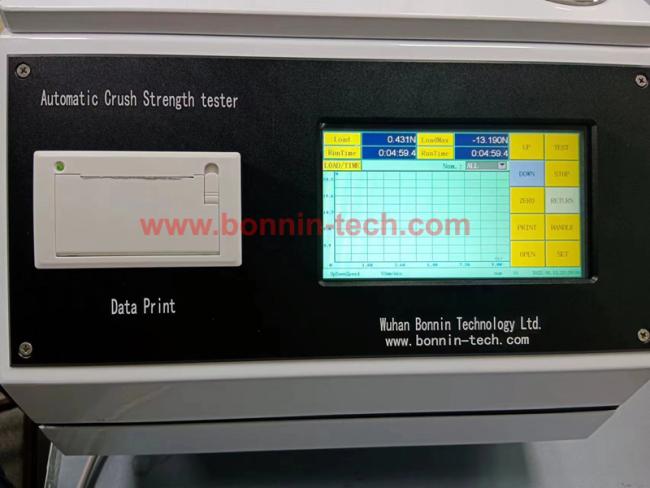

| Man-machine interface | 3.5in 320 * 240 dot matrix liquid crystal display, curve display |
| Print output | thermal printer |
| Working environment | temperature (20 ± 10) ℃, humidity <85% |
| Weight | 45kg |
| Dimensions | 450*400*500 mm |
