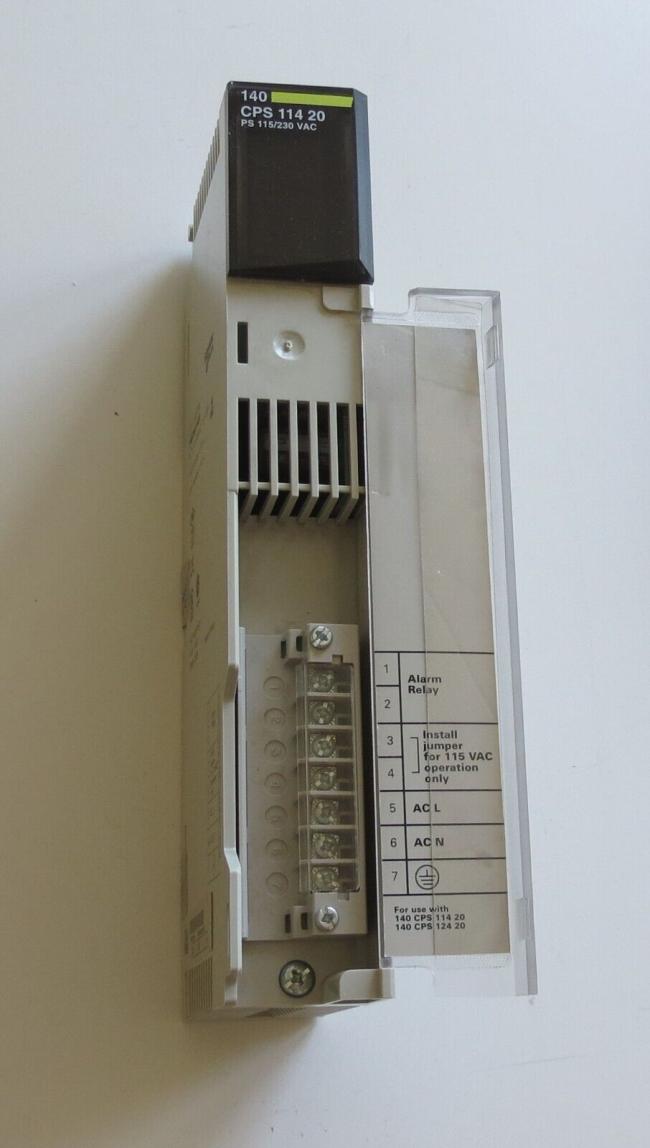

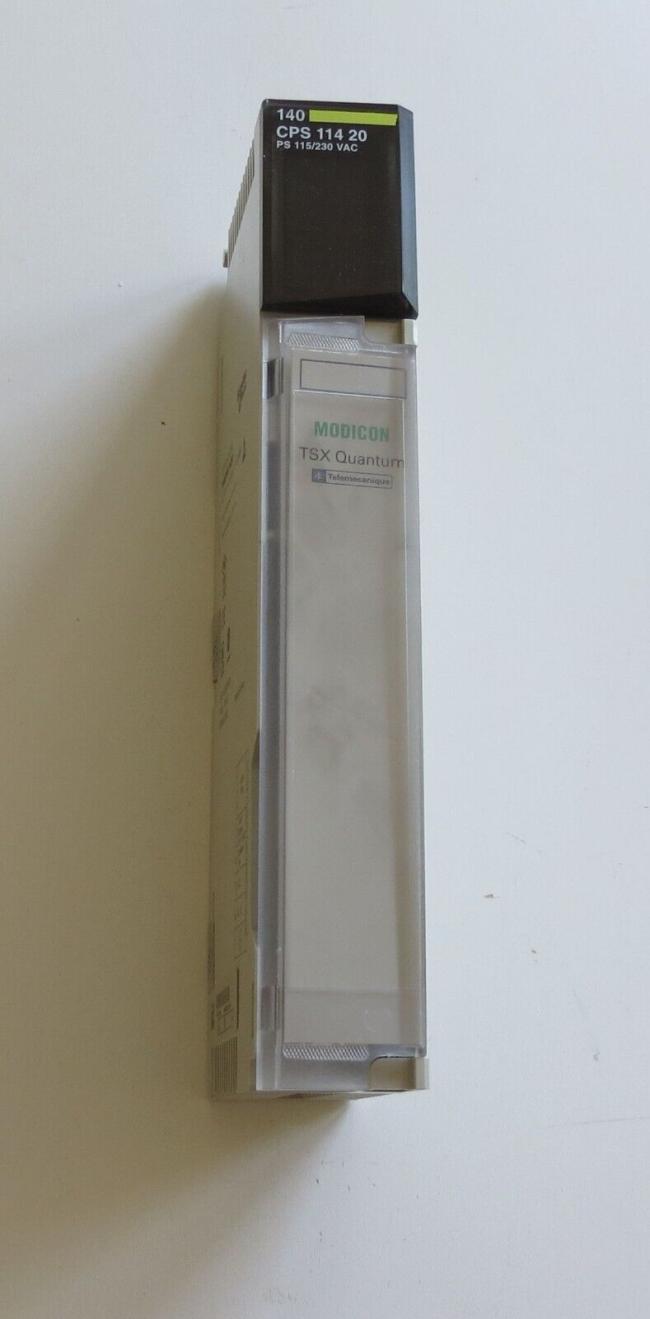

Schneider 140CPS11420 Redundant Power Supply Module 2A 115-230VAC 50-60HZ 5.1VDC NEW AND ORIGINAL GOOD PRICE

Details

Model: 140CPS11420

Type: Redundant Power Supply Module

Current: 2 A

Frequency: 50/60 HZ

Voltage: 115-230 VAC

Brand: Schneider

Origin Of Country: France

Condition: Original New

Warranty: 1 Year

Descriptions

The Modicon™ Quantum™ PACs provides well balanced CPUs that are able to provide leading performance from boolean to floating point instruction. Quantum PACs is a high level multitasking system with memory capacity up to 7 Mb using PCMCIA extensions. Quantum has plug and play high performance Hot Standby solutions with LCD keypad for local monitoring. Numerous built in ports (USB port, Ethernet TCP/IP port with Web server, Modbus Plus and at least one Modbus serial port) on the front panel. In rack has connectivity to Profibus DP and an embedded Ethernet router. Product range benefits include a large range of processors, Modicon Quantum is ideal for complex processes. The power of its processors results in optimum cycle times, while integrating ever more communication functions, diagnostics, memory flexibility and data storage. For more flexibility chose the best topology, daisy chain loop, ring, star or bus for the design of your Ethernet architecture. Higher availability Hot standby CPUs and daisy chain loop topology improve the availability of your process. In case of cable failure, the recovery time is less than 50 ms for the entire Quantum Ethernet I/O architecture. Increase the availability of your architecture with the CRA and CRP Quantum Ethernet I/O modules (QEIO). Expand your architecture and integrate easily with distributed devices in the same network (such as HMI, variable speed drives, I/O islands, etc.). To facilitate installed base migration the Quantum PAC supports five IEC languages as standard: LD, ST, FBD, SFC, IL and the Modicon LL984 language. This PAC is specially shaped for process control applications with conformal coated modules and has an extensive catalog of partner modules. Safety processors and I/O modules to manage safety integrated systems are available. The Quantum Safety system is now available, certified TUV Rheinland, simple to use and ready to be integrated in your automated system. Quantum PACs are used for process control, infrastructure and safety.

Specifications

Main

Range of Product	Modicon Quantum automation platform
Product or Component Type	Power supply module
power supply type	Summable or standalone

Complementary

input voltage	115 V 93...132 V) AC 47…63 Hz 230 V 170...276 V) AC
input current	1300 mA 115 V 750 mA 230 V
inrush current	19 A 230 V 38 A 115 V
rated power in VA	130 VA
associated fuse rating	2 A, slow-blow
harmonic distortion	<= 10 % of fundamental rms value
output voltage	5.1 V DC
power supply output current	11 A 140 °F (60 °C) standalone 20 A 140 °F (60 °C) summable
output overvoltage protection	Internal
output overload protection	Internal
power dissipation	6 + (1.5 x Iout) where Iout is in A
alarm output	1 NC 6 A 220 V power supply fault
local signalling	For power (PWR OK) 1 LED (green)
marking	CE
module format	Standard
Net Weight	1.43 lb(US) (0.65 kg)

Environment

standards	UL 508 CSA C22.2 No 142
Product Certifications	CUL
resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
resistance to electromagnetic fields	9.14 V/m (10 V/m) 80…2000 MHz IEC 801-3
ambient air temperature for operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
operating altitude	<= 16404.2 ft (5000 m)

Ordering and shipping details

Category	18155-QUANTUM I/O & POWER SUPPLIES
Discount Schedule	PC21
GTIN	3595862017107
Nbr. of units in pkg.	1
Package weight(Lbs)	27.70 oz (785.4 g)
Returnability	No
Country of origin	CN

Packing Units

Unit Type of Package 1	PCE
Package 1 Height	1.77 in (4.49 cm)
Package 1 width	6.42 in (16.3 cm)
Package 1 Length	12.24 in (31.08 cm)
Unit Type of Package 2	S03
Number of Units in Package 2	7
Package 2 Weight	216.35 oz (6133.5 g)
Package 2 Height	11.81 in (30 cm)
Package 2 width	11.81 in (30 cm)
Package 2 Length	15.75 in (40 cm)
Unit Type of Package 3	P12
Number of Units in Package 3	168
Package 3 Weight	5509.84 oz (156204 g)
Package 3 Height	37.40 in (95 cm)
Package 3 width	31.50 in (80 cm)
Package 3 Length	47.24 in (120 cm)

Contractual warranty

Warranty	1 Year
