4G LTE Outdoor Panel Antenna 18dbi High Gain 698MHz - 2690MHz
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
5-8working days
Brand:
Saintenna
Product Description
4G LTE antenna Outdoor flat Panel 18dbi High Gain 698-2690MHz antenna
PRODUCT INFORMATION
| Dimension(mm) | 200mm *200mm*12mm |
| Connect Type | N-K(Customized) |
| Color | Black |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Frequency Range(GHz) | 1.7GHz-2.7GHz |
| Gain(dBi) | 12 |
| VSWR | ＜2 |
| Polarization | Linear |
| Input Impedance(Ω) | 50 |
| Max Input Power(w) | 10 |
| Mechanical Specification | |
| Name | 5.3G-5.8G high gain directional antenna |
| Part Number | SAA31232A |
| Dimension(mm) | 330mm *330mm*12mm |
| Connect Type | N-K |
| Cable Length(mm) | |
| Color | Black |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | |
| Frequency Range(MHz) | 5300-5800 |
| Gain(dBi) | 25 |
| VSWR | ＜1.5 |
| Polarization | Linear |
| Input Impedance(Ω) | 50 |
| Max Input Power(w) | 10 |
| Mechanical Specification | |
| Name | 2port 2.3-3.6GHz panel antenna |
| Part Number | SAA31067A |
| Dimension(mm) | 150×150×17.6 |
| Connect Type | MHF |
| Cable Length(mm) | 1.13-150 |
| Color | Green |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | ||
| Frequency Range(MHz) | 2300-2700 | 3400-3600 |
| Gain(dBi) | 8.7 | 9.7 |
| VSWR | ＜2 | ＜2 |
| Polarization | Vertical | |
| Input Impedance(Ω) | 50 | |
| Max Input Power(w) | 5 | |
| Mechanical Specification | |
| Name | 4port 0.7-2.7GHz panel antenna |
| Part Number | SAA31185A |
| Dimension(mm) | 175×147×16.8 |
| Connect Type | MHF |
| Cable Length(mm) | 1.13-220 |
| Color | Green |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | ||
| Frequency Range(MHz) | 790-960 | 1710-2700 |
| Gain(dBi) | 2.6 | 4.8 |
| VSWR | ＜3 | ＜3 |
| Polarization | Vertical | |
| Input Impedance(Ω) | 50 | |
| Max Input Power(w) | 5 | |
| Mechanical Specification | |
| Name | 4 port 3.4-3.8GHz panel antenna |
| Part Number | SAA31113A |
| Dimension(mm) | 230×108×15.9 |
| Connect Type | MHF |
| Cable Length(mm) | 1.13-135 |
| Color | Green |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | |
| Frequency Range(MHz) | 3400-3800 |
| Gain(dBi) | 10 |
| VSWR | ＜3 |
| Polarization | Vertical |
| Input Impedance(Ω) | 50 |
| Max Input Power(w) | 5 |
| Mechanical Specification | |
| Name | 9.0G-10.0G high gain directional antenna |
| Part Number | SAA31233A |
| Dimension(mm) | 200mm *200mm*12mm |
| Connect Type | N-K |
| Cable Length(mm) | |
| Color | Black |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | |
| Frequency Range(MHz) | 9000-10000 |
| Gain(dBi) | 23 |
| VSWR | ＜2 |
| Polarization | Linear |
| Input Impedance(Ω) | 50 |
| Max Input Power(w) | 10 |
| Mechanical Specification | |
| Name | 9.0G-10.0G high gain directional antenna |
| Part Number | |
| Dimension(mm) | 200mm *385mm*14.2mm |
| Connect Type | N-K |
| Cable Length(mm) | |
| Color | Black |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | |
| Frequency Range(MHz) | 9000-10000 |
| Gain(dBi) | 23 |
| VSWR | ＜2 |
| Polarization | Linear |
| Input Impedance(Ω) | 50 |
| Max Input Power(w) | 10 |
| Mechanical Specification | |
| Name | 2.3G-2.4G high gain directional antenna |
| Part Number | |
| Dimension(mm) | 340mm *φ200 |
| Connect Type | N-K |
| Cable Length(mm) | |
| Color | Black |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | |
| Frequency Range(MHz) | 2300-2400 |
| Gain(dBi) | 14 |
| VSWR | ＜2 |
| Polarization | Linear |
| Input Impedance(Ω) | 50 |
| Max Input Power(w) | 10 |
| Mechanical Specification | |
| Name | 2.4G-5.8G-GNSS panel antenna |
| Part Number | |
| Dimension(mm) | 500×500×22mm |
| Connect Type | SMA-J |
| Cable Length(mm) | |
| Color | |
| Work Temp.(℃) | -40℃～+85℃ |
| Humidity | <75% |
| Electrical Specification | |
| Frequency Range(MHz) | 2.4-5.8-GNSS |
| Gain(dBi) | Enclosed |
| VSWR | Customized |
| Polarization | Customized |
| Input Impedance(Ω) | Customized |
| Max Input Power(w) | Customized |

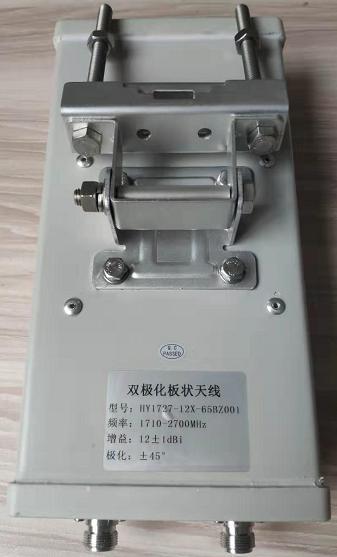

PRODUCT PICTURE
PRODUCT CATEGORY
Our Main prouct is Wifi antenna, GPS antenna, GNSS antenna, 433mhz antenna, PCB antenna, FPC antenna, 4G lte antenna and so on.
OUR ADVANTAGES:
1. All the specifications bellow were customized by customers, we provide OEM/ODM service.
2. Samples available
3. Fast delivery, high quality and best price.
4. Saintenna have over 10years experience in antenna design and development.
Shipping&Packaging
1. Payment available: 100% T/T, Western Union, Paypal and so on.
2. Country of origion: Shanghai, China
3. Delivery terms: By sea or air or express( EMS, DHL, UPS, FedEx, TNT and so on)
