Moisture LED Tri Proof Light 30W-120W AC100-277V Factory School 5 Years Warranty
LED Dustproof and Moistureproof Lights 30W to 120W AC100-277V
Description
Design Lights consortium (DLC)-Qualified LED Tri-proof lights are engineered for powerful lighting in harsh environments.
A vapor tight housing protects the light source from water and dirt, while new generation LEDs and drivers provide higher efficacy and greater energy savings
The IP66-rated fixtures are designed to replace less-efficient fluorescent strip lights in car wash operations, airports, tunnels, mantenace areas, parking garages and stairwells
Power
30-120W
Features
Suitable for wet location
ETL & Premium DLC 120-140LM/W
5 Years warranty
UGR less than 20
0-10V dimmable is available.
Compatible with DALI dimmer
IP65, 100-277V is available
Waterproof, dustproof, moistureproof
Over 60% energy saving compared to fluorescent fixtures
Excellent thermal conductivity and heat dissipation
High optical PC Cover with 93% transmission
Stainless steel spec grade clips
Specification
| Model | Input | CRI | CCT | Power | Size | PF | LPW | Lumen |
| AN-SF-4FT-40-03 | AC100-277V | >83 | 3000K,3500K,4000K,5000K | 40w | 4FT | 0.99@120V | 140LM/W | 5600LM |
| AN-SF-4FT-60-03 | AC100-277V | >83 | 3000K,3500K,4000K,5000K | 60w | 4FT | 0.99@120V | 140LM/W | 8400LM |
| AN-SF-5FT-80-03 | AC100-277V | >83 | 3000K,3500K,4000K,5000K | 80W | 5FT | 0.99@120V | 140LM/W | 11200LM |
| AN-SF-8FT-90-03 | AC100-277V | >83 | 3000K,3500K,4000K,5000K | 90W | 8FT | 0.99@120V | 140LM/W | 13200LM |
| AN-SF-8FT-120-03 | AC100-277V | >83 | 3000K,3500K,4000K,5000K | 120W | 8FT | 0.99@120V | 140LM/W | 16800LM |
Light Distribution Curve
Application
Food Processing
Facilities
Warehouses

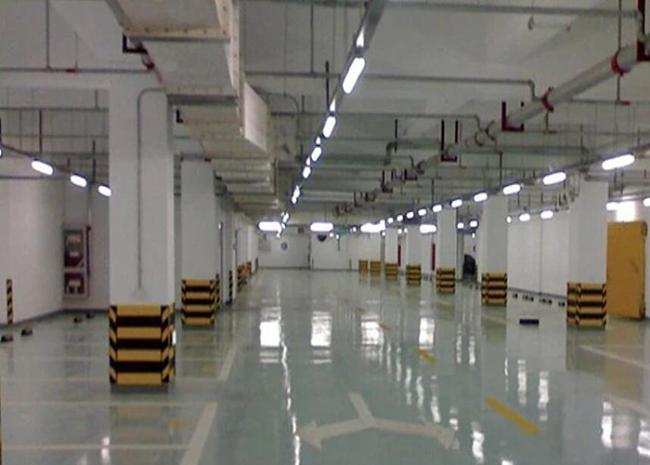

Parking Garages
Wet Environments & Walkway Canopies
Harsh Evironments
Hospital
School and Gymnasiums
Recreation centers
Parts
About our Driver
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
