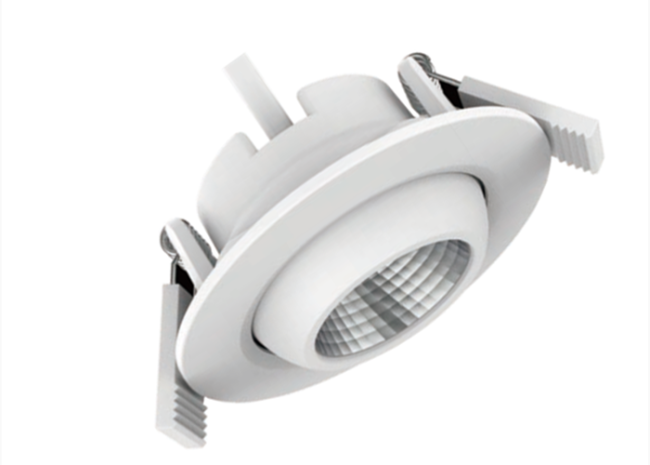

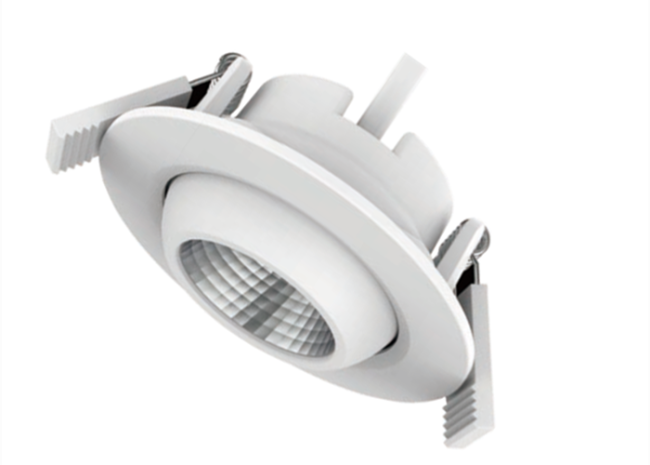

5W Mini Led Ceiling Downlights 3000K Warm White Color For Supermarket And Hotel
5W Mini LED Panel Down Light 3000K Warm White Color for Super-market and Hotel
Features
38° beam angle, Rotatable angle ±30°
Non dimmable
Plastic housing, V-2 flame rating.
220-240V dive built-in.
3000K 4000K 6000K for option.
Warranty: 3years. IP20
3 inch to 8 inch Whole family Die-Casting Aluminum Downlight Fixture
Flat Ring 10W 12W 15W 20W 24W 30W LED Down Light For Hotels
40° beam angle, Rotatable angle ±30°
Non dimmable (A)and Triac dimmable(B) available.
Thermal conductive plastic coated aluminum housing, V-0 flame rating.
220-240V dive built-in, integrated desin.
3000K 4000K 6000K for option.
Warranty: 3years. IP20
- 1. White inner box or color box,Brown Master carton .
2. OEM package available - Port
- Shanghai
- Lead Time :
-
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 45 To be negotiated
Application
Decoration of Hotel. Restaurant. Dinner room. Jewelry store. Shopping mall. Exhibition. Corridor. Meeting room. Showroom. Hospital. Public
area. Bar, KTV, Disco, Club. Entertainment
Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room
Specification
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout mm |
| AN193-5W-75/R860/840/830 A | 5W | 400-425 | 220-240V~50-60Hz | 3000K 4000K 6000K for option | Ra80 | Φ85*30.8 | Φ68-75 |
| AN193-5W-75/R860/840/830 B | 5W | 400-425 | Φ85*38.5 | Φ68-75 |
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout mm |
| AN192-3W-75/R860/840/830 | 3W | 210-230 | 220-240V~50-60Hz | 3000K 4000K 6000K for option | Ra80 | Φ85*43.8 | Φ75 |
| Model No. | Wattage |
Lumens(±10%) |
Input Voltage | CCT | CRI |
Dimensions |
Cutout |
| AN191-5W-75/R860/840/830 A/B | 5W | 400-450 | 220-240V~50-60Hz | 3000K 4000K 6000K for option | Ra80 | Φ85*43.8 | Φ68-75 |
| AN191-6.5W-75/R860/840/830 A/B | 6.5W | 550-600 | Φ85*43.8 | Φ68-75 | |||
| AN191-10W-90/R860/840/830 A/B | 10W | 950-1000 | Φ105*71 | Φ83-95 |
| Model No. | Wattage |
Lumens(±10%) |
Input Voltage | CCT | CRI |
Dimensions |
Cutout |
| AN-Clivia-6W-120/R860/840/830 A/B/C | 6W | 570-627 | 220-240V~50-60Hz | 3000K 4000K 6000K for option | Ra80 | Φ145*H85 | Φ120-125 |
| AN-Clivia-9W-120/R860/840/830 A/B/C | 9W | 810-890 | Φ145*H85 | Φ120-125 | |||
| AN-Clivia-12W-150/R860/840/830 A/B/C | 12W |
1080-1200 |
Φ175*H93 | Φ145-150 |
| Model No. | Wattage |
Lumens(±10%) |
Input Voltage | CCT | CRI |
Dimensions |
Cutout |
| AN-Koala-9W-92/R8TW | 9W | 810-1000 |
220-240V |
3000K 4000K 5700K |
Ra80 | Φ104*H30 | Φ92 |
| Model No. | Wattage |
Lumens(±10%) |
Input Voltage | CCT | CRI |
Dimensions |
Cutout |
| AN204-6W-105x105/R8TW | 6W | 480-510 | 220-240V~50-60Hz |
3000K 4000K 6000K |
Ra80 | 120*120*35 | 105*105 |
| AN204-12W-155x155/R8TW | 12W | 960-1020 | 170*170*38 | 155*155 | |||
| AN204-18W-205x205/R8TW | 18W | 1440-1530 | 220*220*45 | 205*205 |
Advatage
1. Competitive price;
2. 3-5years warranty;
3. CE & RoHS;
4. Energy savings of up to 85%, Long life of 50000hrs;
5. No UV IR radiation, no mercury, no glare, Green and eco-friendly lighting source.
6. Adopted original packing COB, imported various Hi-efficiency LED chips . Customer indicated is available.
7.SUNWA driver and heatsink built in, its more safe, reliable, durable and efficien
