110° Beam Angle IP44 6500K SMD Led Kitchen Downlights
Ceiling lighting SMD down light LED Light for Hotel
Features
Plastic housing,V-2 flame rating.
Drive on board design.
Triac dimmable(A) and Tri-color(B) available.
Uniform light, without LGP, no yellowing risk.
3000K 4000K 6000K for option.
Warranty: 3years. IP44 front only. 110°beam angle.
Application

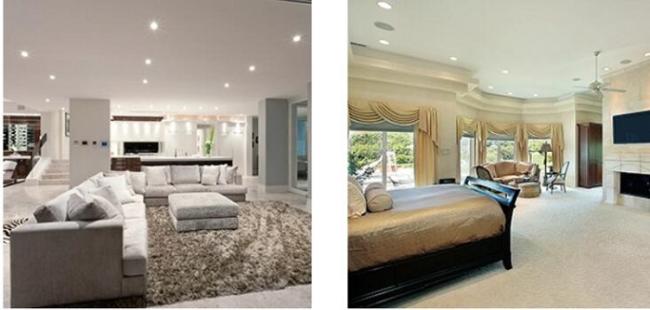

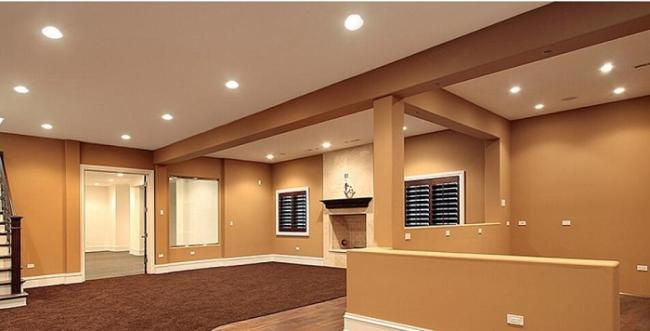

Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room
Specification
|
|
With Isolated driver, AC85-265V | Die-casting aluminum housing, Excellent heat sink, PP 0.8mm diffuser, Minima Glare, Glass lighting, Guide plate, Uniform luminance, 0.2mm pet reflector paper. Isolated driver | |||||||||
| 1 | AN-3RDS-IS | 3W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 90x90mm, Cut hole: 70x70mm,height: 21mm Beams angle: 120, IP20, 2.5 inches, Box: 11.5x3.3x12cm, Package: 60x35x26cm, 100 pcs/carton | |||||||||
| 2 | AN-6RDS-IS | 6W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 119x119x16mm, Cut hole: 100x100mm, Beams angle: 120, IP20, 3.5 Inchecs, Box: 14.3x3.3x15cm, Package: 74x35x32cm, 100 pcs/carton | |||||||||
| 3 | AN-9RD-IS | 9W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 144x144x18mm, Cut hole: 130x130mm, Beams angle: 120, IP20, 4 inches, Box 16x3x19cm, Package: 33x32x40cm, 40 pcs/carton | |||||||||
| 4 | AN-12RDS-IS | 12W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 167x167x 15mm, Cut hole: 150x150mm, Beams angle: 120, IP20, 5 Inches, Box: 18x3x21.5cm, Package: 37x32x45cm, 40 pcs/carton | |||||||||
| 5 | AN-15RDS-IS | 15W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 194x194x 14mm, Cut hole: 170x170mm, Beams angle: 120, IP20, 6 Inches, Box 21x3x25.5cm, Package: 52x32x44cm, 40 pcs/carton | |||||||||
| 6 | AN-18RDS-IS | 18W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 219x219x 15mm, Cut hole: 200x200mm, Beams angle: 120, IP20, 8 Inches, Box: 23x3x27.5cm, Package: 56x32x48, 40 pcs/carton | |||||||||
| 7 | AN-24RDS-IS | 24W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 297x297x 15mm, Cut hole: 275x275mm, Beams angle: 120, IP20, 12 Inches, Box: 30.5x3x34cm, Package: 62x32x35.5cm, 20 pcs/carton | |||||||||
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout Mm |
| AN203-6W-100/R8TW | 6W | 480-510 | 220-240V~50-60Hz |
3000K 4000K 6000K CCT Selectable |
Ra80 | Φ113*35 | Φ90-100 |
| AN203-12W-150/R8TW | 12W | 960-1020 | Φ174*38 | Φ145-155 | |||
| AN203-18W-205/R8TW | 18W | 1440-1530 | Φ244*38 | Φ198-210 | |||
| AN203-20W-220/R8TW | 20W | 1600-1700 | Φ265*41 | Φ215-230 |
About us
Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.
Aina-4 products reflect the business philosophy of raising customer expectations and giving them freedom of personal expression through best quality design, materials, and manufacturing processes, at the same time making sure that it leaves a positive impact on all stakeholders socially, economically, and ecologically.
FAQ
Q1. What is the MOQ?
MOQ 1 pcs for mormal product.
Q2. What is your sample terms?
Normal product, 1~3 days. Special product 5-10 days.
Q3. What is the delivery time?
Normal order 5-15 days after deposit. Bulk order 10-30 days.
Q4. Can you OEM?
Yes.
Q5. Can you print our logo on the product?
Yes.
Q6. What standard can this item meet?
CE/RoHS/VDE/SASO/SAA/CCC/CSA/BIS
Q7. Do you have emergency solution for this product?
Yes.
Q8. Do you have dimmable solution for this item?
Yes.
