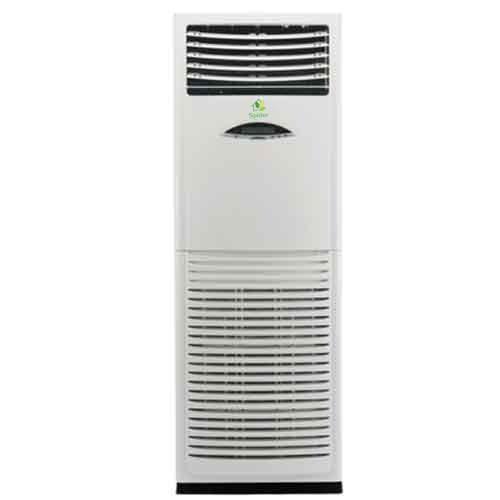

5hp Durable Floor Mounted Split Type Aircon White Color Easy To Install
White 5hp Floor Standing Air Conditioner , Durable Floor Mounted Split Type Aircon
Feature :
Use the known brand rotary type compressor;
High Efficient Internal Thread Copper pipe;
LED digital display, Fault Self-Diagnose Code Showing;
Self-diagnose capability, error code showing;
Intelligent Defrost,Independent Dehumidification,Sleep Mode,Quiet Operation;
Low Voltage Startup,Auto—protection,Auto Restart;
Optional Refrigerant:R410A & R22 ;
Optional Voltage:220V/50Hz & 220V/60Hz;
With CE,RoHS ,ISO9001, ISO14001 standard;
Sales Area:Mid East,Africa ,South America,Europe,Asia,Central America,Oceania;
Advantage
- Ultra-quiet design
- 24-hour timer
- LCD remote controller
- Fault self-diagnosis function
- Efficient energy saving
- Ultra-strong EMC
- Sleeping mode function
- Independent dehumidification (Dry mode)
- Constant fan speed control
Detailed specification:
|
Type |
24 |
42 |
48 |
60 |
|
Capacity |
|
|
|
|
|
Cooling Capacity Btu |
24000 |
42000 |
48000 |
60000 |
|
Heating Capacity Btu |
27000 |
48000+11000 |
52000+11000 |
60500+11000 |
|
Electricabl Parts |
|
|
|
|
|
Power Input (W) Cooling |
2470 |
4530 |
5100 |
6890 |
|
Heating |
2590 |
4940+3000 |
5200+3200 |
6660+3200 |
|
Operating Current (A) Cooling |
10.70 |
8.10 |
8.60 |
11.00 |
|
Heating |
11.20 |
8.6+4.5 |
8.6+5 |
11.0+4.5 |
|
Performance |
|
|
|
|
|
EER W/W |
2.85 |
2.65 |
2.76 |
2.55 |
|
COP W/W |
3.05 |
2.85 |
2.93 |
2.75 |
|
Air Flow Volume(m3/h) Indoor |
1050 |
1800 |
2100 |
2200 |
|
Noise Level( dBA) Indoor/Outdoor |
42/59 |
45/62 |
45/63 |
46/63 |
|
Net Dimension & Weight |
|
|
|
|
|
Indoor(mm) |
500x1780x300 |
560x1910x360 |
560x1910x360 |
650x1897x370 |
|
Outdoor(mm) |
800x690x300 |
1255x945x340 |
1255x945x340 |
1255x945x430 |
|
Net Weight(kg) Indoor/Outdoor |
0.69 |
0.55 |
0.48 |
0.48 |
|
Packing Dimension& Gross Weight |
|
|
|
|
|
Indoor(mm) WxHxD |
620x1890x450 |
680x2020x510 |
680x2020x510 |
700x2010x400 |
|
Outdoor(mm) WxHxD |
940x750x420 |
1300x1085x430 |
1300x1085x430 |
1300x1085x430 |
|
Gross Weight(kg) Indoor/Outdoor |
48,59 |
61,117 |
64,135 |
70,143 |
|
Applicable Area |
|
|
|
|
|
Applicable Area m3 |
35~47 |
60~80 |
80~100 |
100~150 |
|
Loading Quantity |
|
|
|
|
|
Loading Quantity 20/40/40'HC |
40/78/90 |
18/38/48 |
18/38/48 |
18/38/46 |
Details
FAQ
Q1:What's the warranty of your air conditioner?
A1: Our warranty is complete unit for 1 year and compressor for 3 years.
Q2:Can you allow trail order firstly?
A2:Of course,small order also can be allowed.
Q3:What kind of certification do you have for your air conditioner?
A3:We have CCC,CE,ROHS,EMC,ISO9001 for our air conditioner.
Q4:Can you export your air conditioner?
A4:Yes,above 90% are exported.
