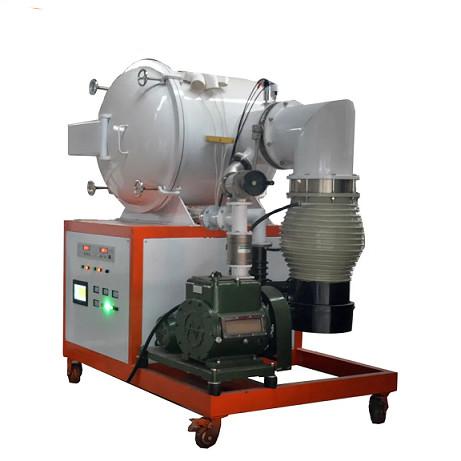

High Vacuum Heating Furnace 1600 Degree 12L MoSi2 Heating
High Vacuum Heating Furnace 1600 degree 12L MoSi2 Heating
What is a high vacuum heating furnace ?
A high vacuum furnace is a type of furnace that is designed to operate under very low levels of pressure, typically in the range of 10^-3 torr or lower. The main purpose of a high vacuum furnace is to heat materials in a vacuum environment to facilitate various processes, such as sintering, brazing, annealing, and heat treatment. The low-pressure environment helps to prevent contamination of the material being processed, which can be critical for certain applications like electronic and aerospace components. Typical features of a high vacuum furnace include a vacuum chamber, heating elements, temperature controls, cooling systems, and gas handling systems.
High vacuum heating furnace features:
A. Good temperature uniformity, three-stage heating, computer temperature control, automatic PID adjustment;
B. External circulation air cooling system, high-efficiency heat exchanger, uniform cooling of the workpieces in all directions, fast cooling speed, uniform cooling;
C. Double heat exchanger structure; significant reduction in cooling time;
D. 300kg protective loading sintering furnace, the control box adopts fully mechanical drive, the material can stop at any position, reliable operation and easy maintenance.
High Vacuum Heating Furnace Technical Data
| Chamber size | 200x200x300mm (Width * Height * Depth) (8 Liter) | |||
| Max. temperature | 1200 C (<2hour) | 1400 C (<2hour) | 1700 C (<2hour) | |
| Working temperature | 1100 C | 1300 C | 1600 C | |
| Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. | |||
| 51 programmable segments for precise control of heating rate, cooling rate and dwell time. | ||||
| Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | ||||
| Over temperature protection and alarm allows for operation without attendant. | ||||
| Max vacuum | 0.007Pa | |||
| Temperature accuracy |
±1C |
|||
| Temperature Uniformity | ±5C over 120mm | |||
| ±3C over 80mm | ||||
| Heating rate | 0-20C /min | |||
| Thermocouple | K type | S type | B type | |
| Heating element | Heating wire | SiC heating element | MoSi2 Heating element | |
| Furnace Chamber | 2 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | |
| 1st: 1430°C ceramic fiber board | 1st: 1700°C ceramic fiber board | 1st : 1800°C ceramic fiber board | ||
| 2nd: 1260°C ceramic fiber board | 2nd:1430°C ceramic fiber board | 2nd: 1600°C ceramic fiber board | ||
| 3rd: 1260°C ceramic fiber board | 3rd: 1260°C ceramic fiber board | |||
| Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60C | |||
| Furnace door | Front-side open | |||
| Power cutting off when furnace door open | ||||
| Working voltage | 110V or 220V or 380V, 50HZ or 60HZ | |||
| Rated power | 8KW | |||
1700Type High Vacuum Heating Furnace Model
| Model | Max. Temp. | Chamber size(WxHxD mm) | Working voltage and power |
| SP-1700VF-1L | 1700℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V/1.5KW |
| SP-1700VF-4.5L | 1700℃ | 150x150x200mm (6"x6"x8") | AC,1-phase,220V.4.5KW |
| SP-1700VF-8L | 1700℃ | 200x200x200mm (8"x8"x8") | AC,1-phase,220V,6KW |
| SP-1700VF-12L | 1700℃ | 200x200x300mm (8"x8"x12") | AC,1-phase,220V,8KW |
| SP-1700VF-36L | 1700℃ | 300x300x400mm (12"x12"x16") | AC,3-phase,380V,16KW |
| SP-1700B-125L | 1700℃ | 500x500x500mm (20"x20"x20") | AC,3-phase,380V,36KW |
Detail Vacuum system of Vacuum heating furnace, Vacuum Melting Furnace,
Mechanical pump
Model: 2X-30
Ultimate pressure: 6x10-2
Pumping speed: 30L/S
Consumption of pumping oil: 4.5L
Heating power: 3 kW
Consumption of cooling water: 480L/H
Rotation speed of main shaft: 430rpm
Warranty for 1700C High Vacuum heating furnace
One year limited warranty with lifetime support, excluding heating element
and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under this coverage
