9/18mm Mosi2 Resistance Dental Furnace Resistor Heater

Mosi2 Furnace resistor heater Introduction:

Silicon molybdenum rod is a kind of resistance heating element made of molybdenum disilicide based on high temperature and oxidation resistance. When used in a high-temperature oxidizing atmosphere, a layer of bright and dense quartz (SiO2) glass film is formed on the surface, which can protect the inner layer of the silicon-molybdenum rod from oxidation, so the silicon-molybdenum rod element has unique high-temperature oxidation resistance.

According to the structure, working atmosphere and temperature of the heating equipment, the correct selection of the surface load of the electric heating element is the key to the service life of the silicon molybdenum rod electric heating element.

Furnace resistor heater Application:

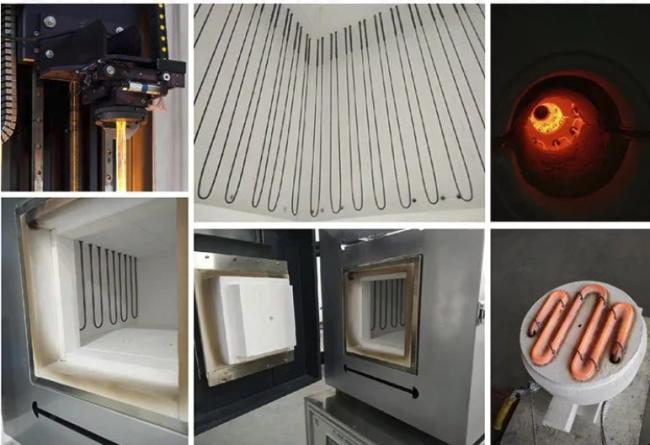

MoSi2 heating elements is widely used in various industries of metallurgy , glass , ceramic, magnetic materials , heat-resistant material , etc. According to shape , it can be divide into "pole " "U" "W". Special shape such as right angle shape and bend angle shape can be produced according to customer's request. Because the plasticity of element will soft above 1350 °C .We often see "U" and "W" type .

Furnace resistor heater Shape:

* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃

M1700 type (d/c): dia3/6mm, dia4/9mm, dia6/12mm, dia9/18mm, dia12/24mm

M1800 type (d/c): dia3/6mm, dia4/9mm, dia6/12mm, dia9/18mm, dia12/24mm

M1900 type (d/c): dia3/6mm, dia4/9mm, dia6/12mm, dia9/18mm, dia12/24mm

Specification of Mosi2 Furnace resistor heater:

d = the diameter of hot zone

c = the diameter of cold zone

Le = the length of hot zone

Lu = the length of cold zone

a=Shank spacing

g=junction length

Physcial Property of Silicon Molybdenum Heater:

Trade temrs of Silicon Molybdenum Heater:

1. Packing

Export carton packing box for small qty;

Export wooden packing box for large qty.

2. Shipping

Fedex/DHL/UPS/TNT for samples, Door-to-Door;

By Air or by Sea for batch goods;

Customers specifying freight forwarders or negotiable shipping methods;

Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

Warranty

Our products are warranted to be free from defects in materials or workmanship for one year (12 months) from the date of purchase. Within this period, we will, at its sole options, replace any components that fail in normal use.

Note:This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.

.
